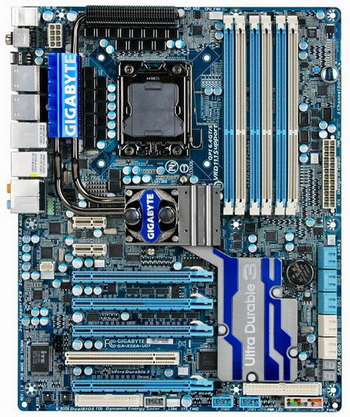

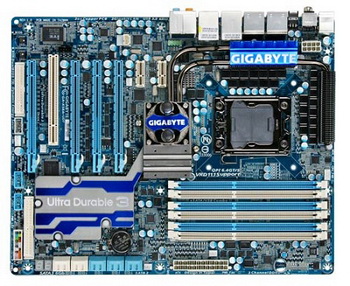

GIGABYTE Company announced the motherboard model GIGABYTE GA -X58A-Ud7.
This model is based on the combination of chipset Intel x58 express and south bridge ICH10R. This motherboard is intended for use with the processors Intel core i7 LGA 1366. There are six slots for DIMM modules it is possible to install up to 24 GB DDR3 with up to 2200 MHz frequency. There are also four slots PCI- E x16.
South bridge ICH10R ensures six ports SATA- II with the support to RAID 0, 1, 5 and 10 regimes, and also 10 ports USB 2.0/1.1 . Additional controllers add two SATA- II, PATA, three interfaces IEEE 1394 and two eSATA/USB.
Furthermore, the motherboard includes two ports SATA 6 Gbit/s and two ports USB 3.0, realized due to the chips Marvell and NEC . It is worthwhile to note the presence of two net adapters gigabit ethernet and eight-channel audio with the support Of high definition audio and Dolby home theater.
Among the special features, it is possible to isolate the copper power layers and the doubled thickness grounding (70 m) in accordance with the technology Of ultra durable 3. This contributes to a reduction in the operating temperature of the critical sections .
In delivery set enters the utilities GIGABYTE smart 6, which ensures simple control of system parameters, including an increase in PC speed , the acceleration of OS loading, control of safety and the restoration of system files . Related Products :
|
