During November last year AMD acknowledged that it will supply the 32 nm llano processors models with built-in graphic core in first half of 2010, although the announcement was planned only in 2011. Monolithic crystal can contain up to four processor core with phenom II architecture, graphic core with directX 11 support memory controller with DDR 3-1600 support . It is assumed that the quantity of transistors on this crystal can reach billion of pieces.
The international conference on semiconductor microcircuits (ISSCC 2010), which will pass in San- Francisco in first half of February, allow to learn more interesting details about the promising developments of central processors by leading producers. Certainly, far from all developments, which will be discussed on this measure, in the constant form reach the production series stage , but there is some benefit.

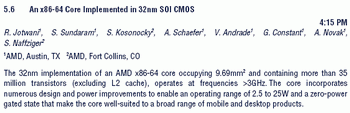

AMD Company intends to describe about the processor with x86-64 architecture, which is released on 32 nm technology with the use of silicon-on- insulator (SOI). Without cache in the second level, the core has an area 9.69 sq. mm and contains more than 35 ml transistors. It is capable of working at the frequency more than 3 GHz, the energy consumption level lies in the range from 2.5 to 25 W. These characteristics allow to use the processor of over a wide range mobile and desktop products.

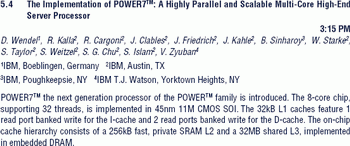

IBM Company intends to describe about the processor power7. Possessing eight physical core, it supports 32 threads, has 32 KB cache in first level, 256 KB cache in the second level and 32 mb divided cache in the third level. Processor is released on 45 nm technology with SOI.

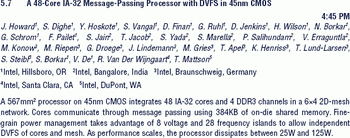

Intel company intends to discuss 45 nm processor with 48 core and IA-32 architecture, which will obtain four-channel DDR- 3 controller and energy consumption level from 25 to 125 W. The core area is equal to 567 sq. mm. Related Products :
|
