At CeBIT 2012 motherboard manufacturers have brought a lot of products based on chipsets Intel Seventh Series.
Asrock propose a range of motherboard Mini-ITX, Micro-ATX and ATX.

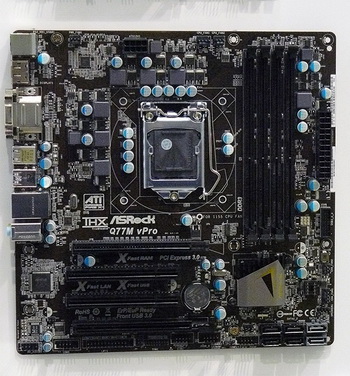

Asrock Q77M vPro:

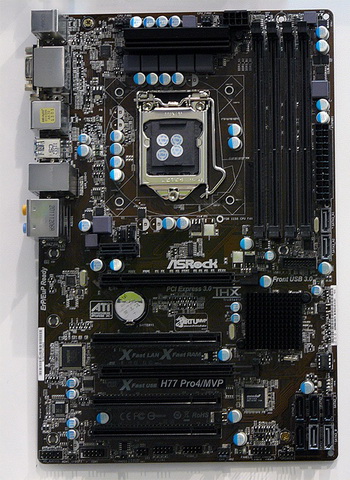

H77 Pro4/MVP (MVP suffix indicates support for technology Lucid, which optimizes the load between the discrete and integrated graphics adapter, and promises to speed up GPU by 70%):

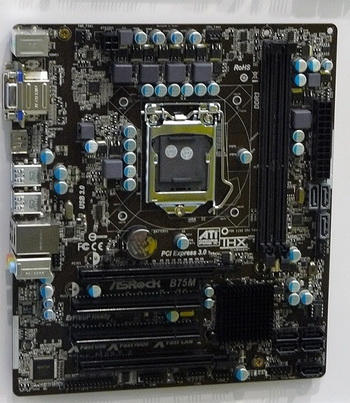

Asrock B75M:

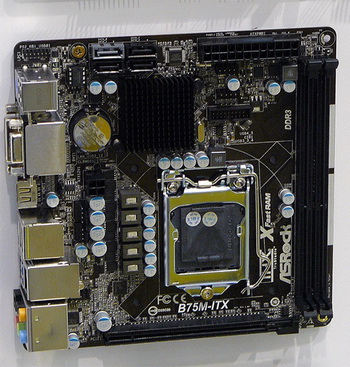

Asrock B75M-ITX:

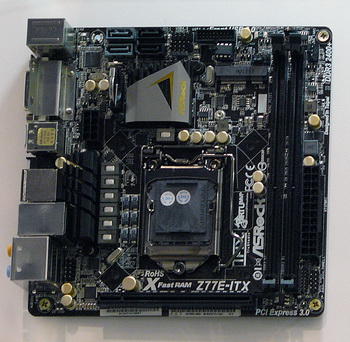

Asrock Z77E-ITX:

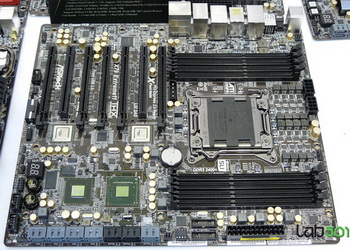

Special attention is given to the motherboard X79 Extreme11. The motherboard is designed to work with processors LGA 2011 and E-ATX format.

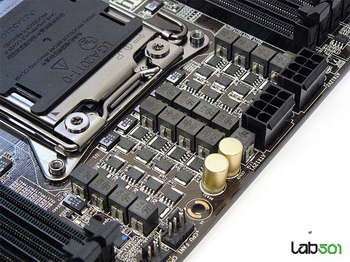

The processor voltage converter has a configuration 16 +2 phase and is controlled by a digital controller, DigiPower, to supply a sufficient amount of energy needed to connect two connectors 8 pin EPS. Eight DIMM slots support up to 64GB DDR3 memory with an effective frequency 2400 MHz memory module voltage regulator is built on 4 +4 phase.
There are seven slots PCI Express 3.0 x16, the motherboard include two chip PLX PEX8747, providing another 32 lines PCI Express 3.0. So, if you connect four video cards will be allocated to each 16 lines.
X79 chipset support (just a couple of SATA 6 Gb / s and four SATA 3Gb / s) LSI SAS2308 chip compensates this and add eight ports supporting SAS 6 Gb / s and multiple RAID modes.
The audio system is based on the processor Creative Sound Core3D, supports 8-channel technology and THX TruStudio Pro. There is dual Gigabit Ethernet output Broadcom, eight ports USB 3.0. The motherboard support the proprietary technologies XFastLAN, XFastUSB and UEFI BIOS. Related Products :
|
