ASRock has prepared five motherboards for APU Trinity.
Model |

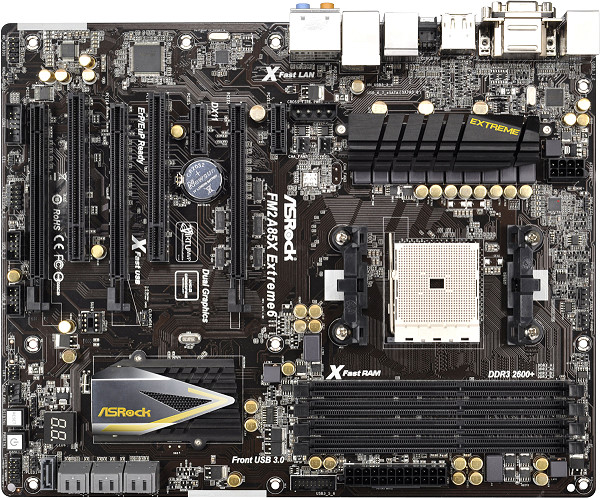

FM2A85X Extreme6 |

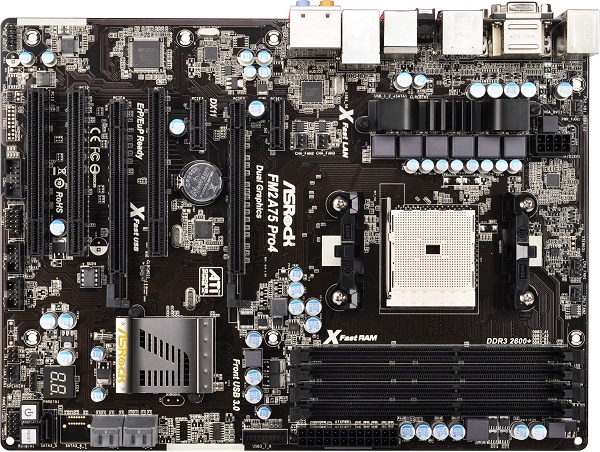

FM2A75 Pro4 |

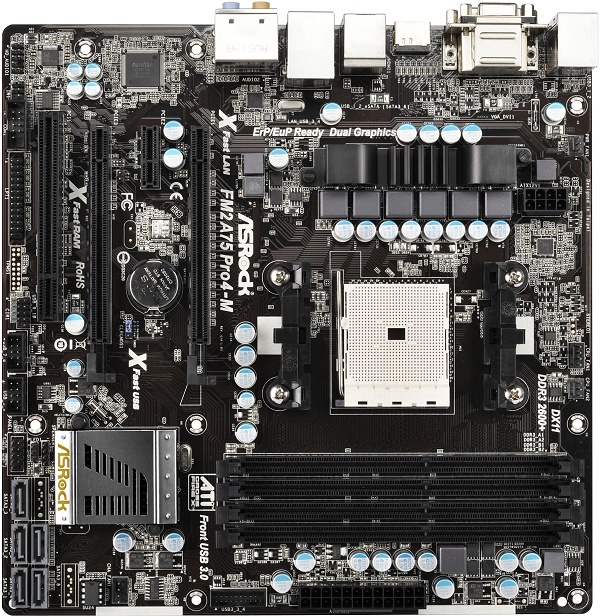

FM2A75 Pro4-M |
Photo |
|
|
|
Standard size |
|
|
Chipset |
|
|
VRM |
|
|
Memory |
- 4 x DIMM, up to DDR3-2600
|
Expansion Slots |
- 3 x PCI Express x16
- 2 x PCI Express x1
- 2 x PCI
|
- 2 x PCI Express x16
- 2 x PCI Express x1
- 3 x PCI
|
- 2 x PCI Express x16
- 1 x PCI Express x1
- 1 x PCI
|
SATA |
|
|
Front I / O |
- 1 x PS / 2
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI
- 1 x DisplayPort
- 1 x SPDIF Out
- 2 x USB 2.0
- 1 x eSATA
- 4 x USB 3.0
- 1 x RJ-45 LAN
- 1 x Clear CMOS
- audio connectors
|
- 1 x PS / 2
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI
- 1 x DisplayPort
- 1 x SPDIF Out
- 2 x USB 2.0
- 1 x eSATA
- 6 x USB 3.0
- 1 x RJ-45 LAN
- 1 x Clear CMOS
- audio connectors
|
- 1 x PS / 2
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI
- 1 x SPDIF Out
- 4 x USB 2.0
- 1 x eSATA
- 2 x USB 3.0
- 1 x RJ-45 LAN
- audio connectors
|
Model |

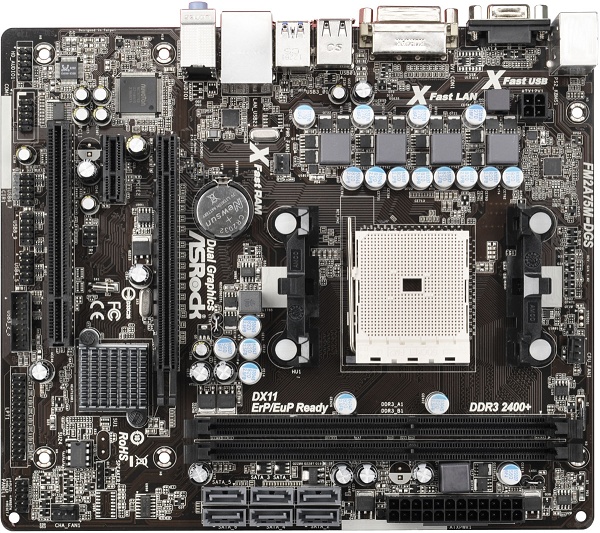

FM2A75M-DGS |

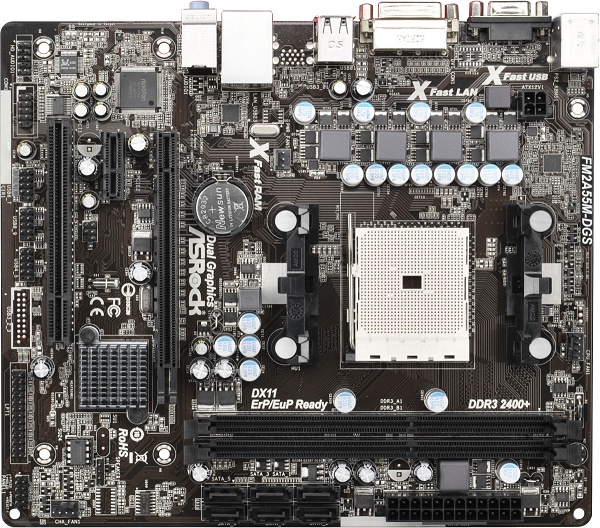

FM2A55M-DGS |
Photo |
|
|
Standard size |
|
Chipset |
|
|
VRM |
|
Memory |
- 2 x DIMM, up to DDR3-2400
|
Expansion Slots |
- 1 x PCI Express x16
- 1 x PCI Express x1
- 1 x PCI
|
SATA |
|
|
Front I / O |
- 1 x PS / 2
- 1 x D-Sub
- 1 x DVI-D
- 4 x USB 2.0
- 2 x USB 3.0
- 1 x RJ-45 LAN
- audio connectors
|
- 1 x PS / 2
- 1 x D-Sub
- 1 x DVI-D
- 4 x USB 2.0
- 1 x RJ-45 LAN
- audio connectors
|
More information about the motherboard is stated on the official ASRock website . Related Products :
|
