ASUS was the first manufacturer to release a motherboards with socket FM2 +, which are designed for hybrid generation processors Kaveri. In addition, the solutions are suitable for use with existing APU by FM2 - Richland and Triniti.

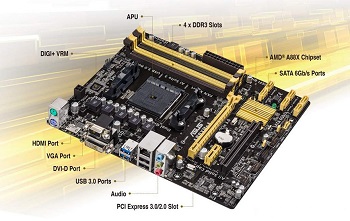

All motherboards are made in the new black gold color scheme. Model A88XM-A, is based on the chip A88X and has power system, built under the "3 +2" phase. There are four slots for memory, six SATA ports with a capacity of 6 Gb / s, a single slot PCI Express 3.0 x16, slot PCI Express 3.0 x1 slot and a PCI. On the I / O ports are two USB 3.0, two ports USB 2.0, video output HDMI, VGA and DVI, audio ports, a Gigabit Ethernet port and two connectors for keyboard and mouse.

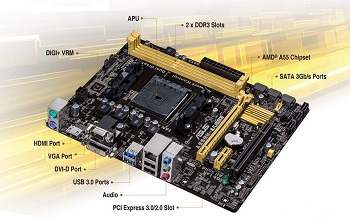

The second model, A55BM-A (chipset A55), has four phase power system, two slots for RAM, three-port SATA 3Gb / s, and a set of expansion slots and connectors on the rear panel, similar to those of the previous model:
The motherboards support a number of proprietary technologies such as USB 3.0 Boost, improve data transfer rates, Fan Xpert, DIGI + and others, designed to improve the reliability and stability of the system.
