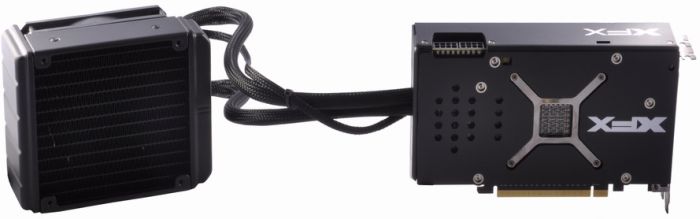

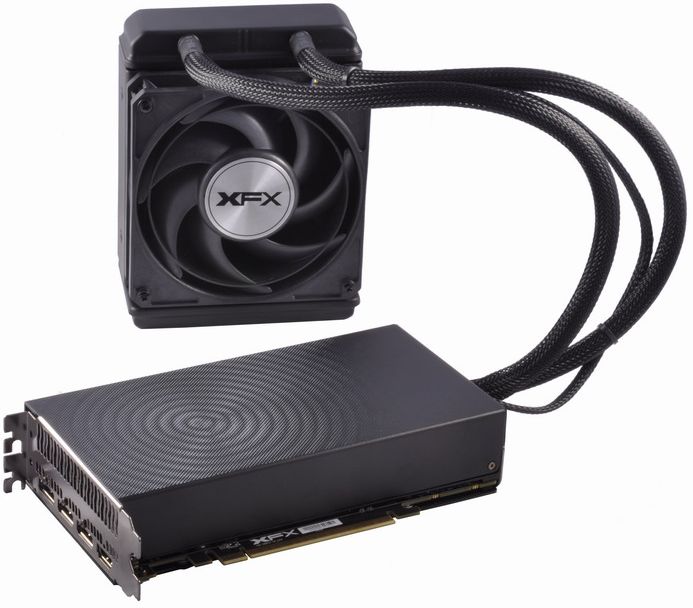

We have already reported that XFX company not only become the fourth manufacturer of graphics cards Radeon R9 Fury with air cooling system, but also offer a unique version of the Radeon R9 Fury with a maintenance-free system with liquid cooling, borrowed from an older graphics card Radeon R9 Fury X.
At the level of PCB design there is no change compared to the reference version of the Radeon R9 Fury X or Radeon R9 Fury, as XFX has focused only on the cooling system. Apparently, based on the so-called Radeon R9 Fury Pro With liquid cooling system is Radeon R9 Fury X with a reduced number of stream processors pieces to 3584 .
The frequencies of the video card up 1000/500 MHz HBM memory type 4 GB communicates with the graphics processor using 4096-bit bus. To the power supply card is connected by a pair of connectors eight pin, on the reverse side of the PCB is provided reinforcing plate. Overall dimensions of the video card does not exceed 203 x 143 x 42 mm. The manufacturer recommends that you connect to the video card power supply capacity of at least 750 watts.

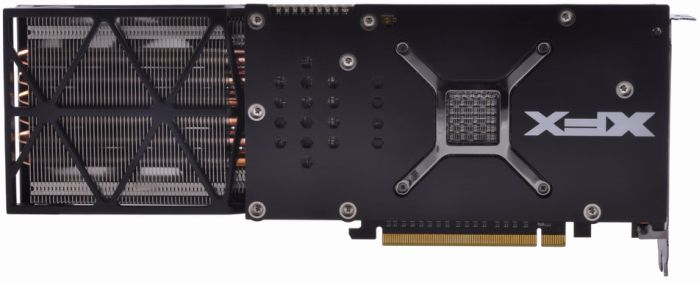

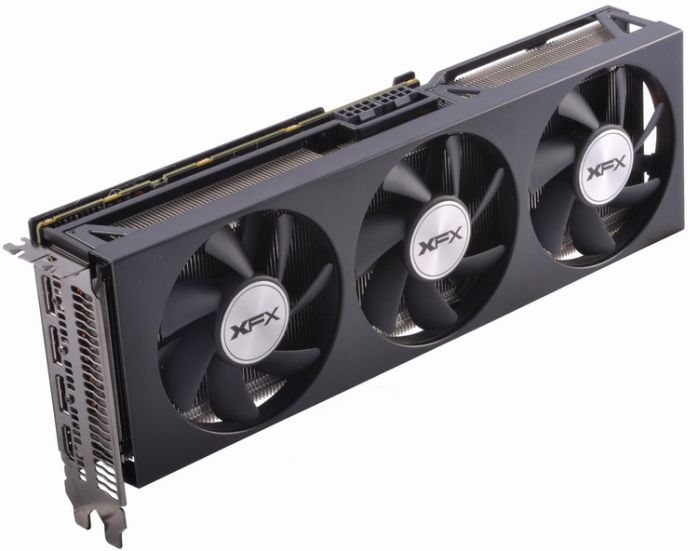

Video card Radeon R9 Fury Pro with air cooling Triple Dissipation uses three fans, and at least six heat pipes. The radiator of cooling system extends far beyond the printed circuit board. Overall dimensions of the video is 315 x 112 x 51 mm.
The frequencies are identical to its predecessor: 1000/500 MHz, the amount of memory (4GB) and bus width (4096 bit) are unchanged. The card is ready to offer 3584 stream processors.
In Germany, the cost of video cards XFX Radeon R9 Fury Pro will reach 569 euros for the version with air-cooled, and 649 euros for the version with maintenance-free liquid cooling system. Related Products :
|
