Swedish Elmor enthusiast used in the experiment the power management module eVc , who is now engaged in the development of components of the brand Asus in Taiwan.

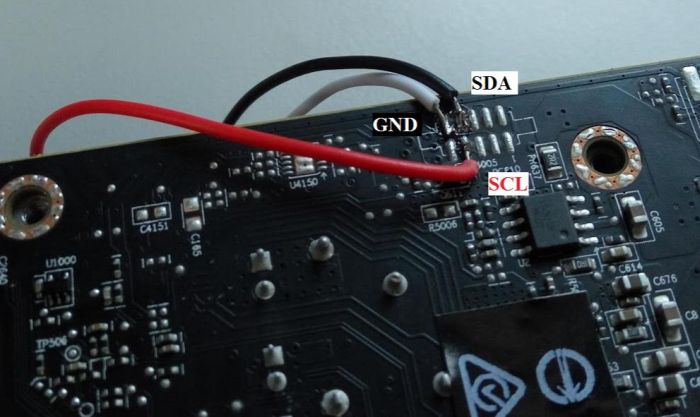

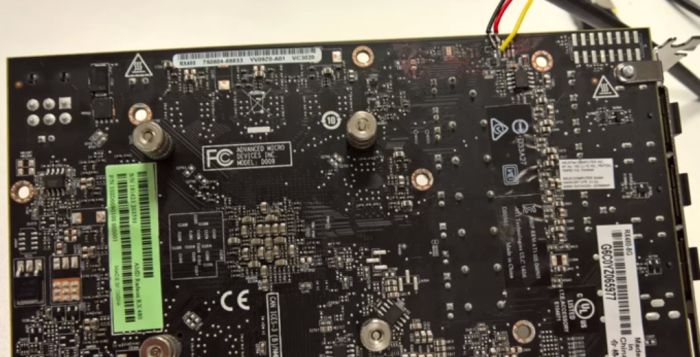

He explained where to solder the wires from the power control module - the photograph shows the reverse side of the printed circuit board standard version Radeon RX 480.

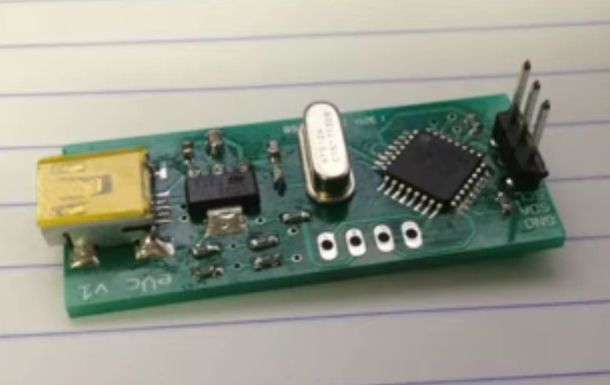

And here is the module itself eVc used for external power management card. As explained by the authors of the experiment, its use allows to raise the voltage on the GPU Polaris 10 (Ellesmere) to 1.35 against 1.15 in the available regular program .

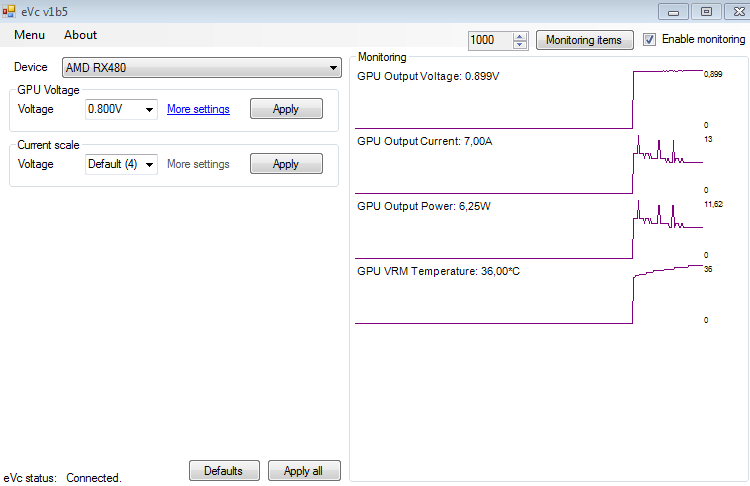

voltage control module has its own driver panel, where you can customize the voltage on the GPU and manage scale divider - the last feature is useful for "cheating" indicator Power Target video, limiting the dispersal in its original state.
During the described Elmor and Der8auer experiment raised the voltage to 1.35 V, and the divisor of the scale was reduced from 4 to 2. power element temperature does not exceed 105 degrees Celsius.

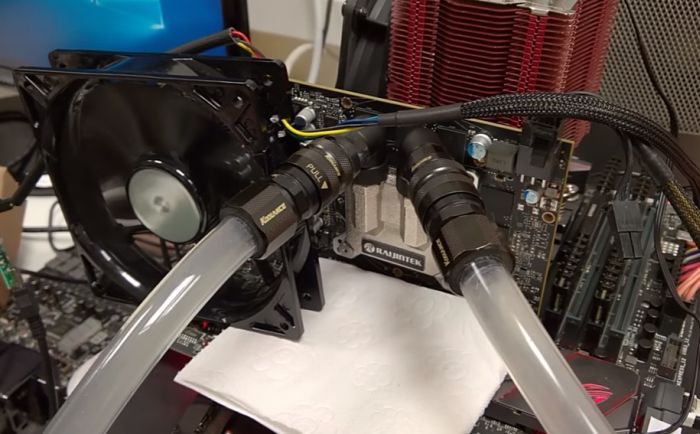

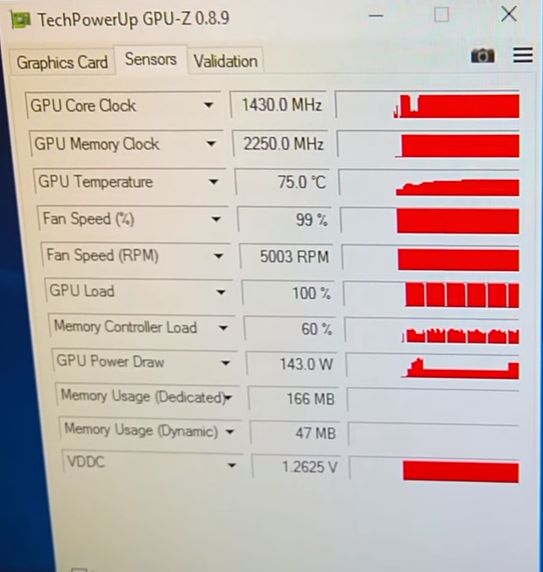

As previously reported, with water-block card was overclocked to 1500/9000 MHz. Nevertheless, even with the standard cooling system and without modification of the voltage thiis instance Radeon RX 480 overclocked to 1430/9000 MHz, although the graphics processor, warmed up to 75 degrees Celsius. Water Unit and special operations for the implementation of the external situation improved power management significantly.
Moreover, as explained in the final fifteen minutes of the movie Der8auer, for Radeon RX 480 limit acceleration "for the core" will be the frequency of 1400-1450 MHz, even when it comes to graphics cards by partners with improved power system and Eight-pin socket. No further tricks to raise GPU frequency will not help under load. At least with the use of cooling, implying continuous operation under load.
