Japanese stores this week, had the GeForce GTX 1080 iChill series by Inno3D company, characterized by interesting design. In principle, the graphics card will be able to boast a combination of power connectors "6 + 8 pin" and the power system, built according to the "6 + 1 phase".

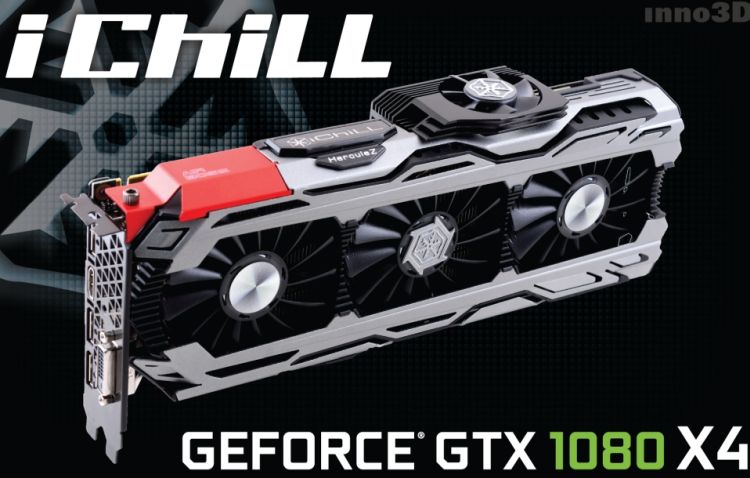

To be precise, we will speak about GeForce GTX 1080 iChill X4 modification that offers frequency 1733/1873/10400 MHz and cooling system with four fans, forcing invade the space of three expansion slots (two and a half, to be precise). video length is 302.2 mm, width - 115.2 mm. By the power supply is connected through a combination of graphics and Eight-six power connectors recommended power supply unit - 550 watts.

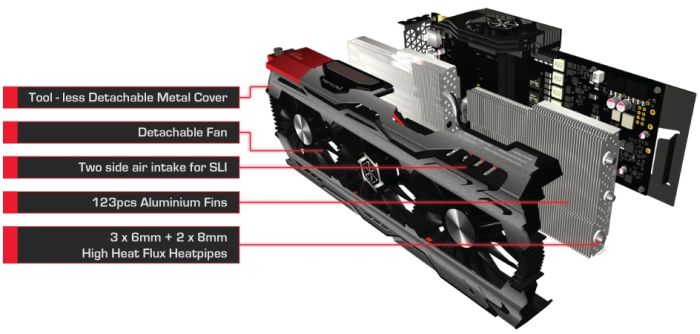

The cooling system includes a metal base of the heat sink 123 aluminum fins, three heat pipes with a diameter of 6 mm and two heat pipes with a diameter of 8 mm, as well as three fan size of 92 mm and compact one - on the side of the section. The metal casing of the cooling system can be removed without tools, fans also can be removed for cleaning from dust.

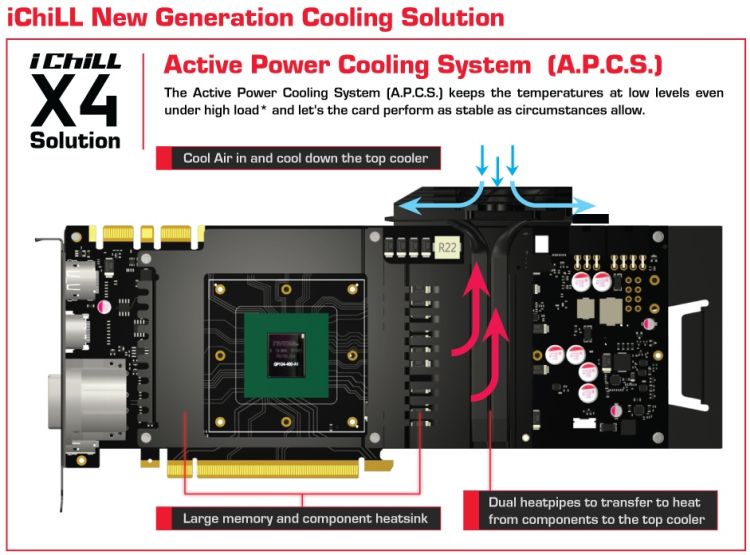

By the side of the fan base of the cooling system are two heat pipes that dissipate heat from the portion of memory chips and power elements. Compact radiator is blown by the fan side. Backlit graphics change color depending on the load on the GPU. On the reverse side of the printed circuit board is covered with the reinforcing plate. Video card Inno3D iChill GeForce GTX 1080 X3 side radiator fan section with compact deprived, so that the opponents of the controversial layout decision have a choice when buying.
