POSTER: computer news   ||   PROCESSOR COOLER ROUND UP	DATE:2008-10-27

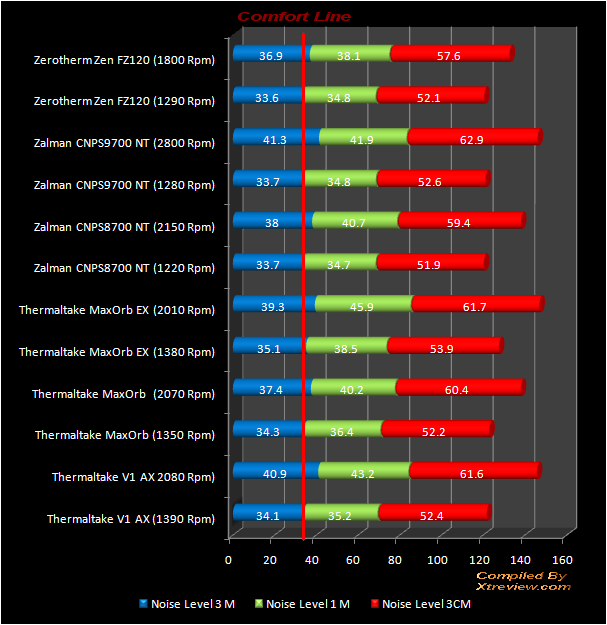

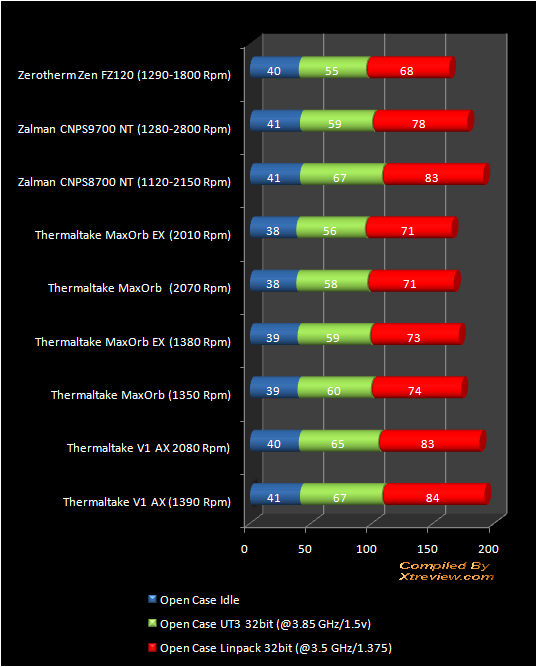

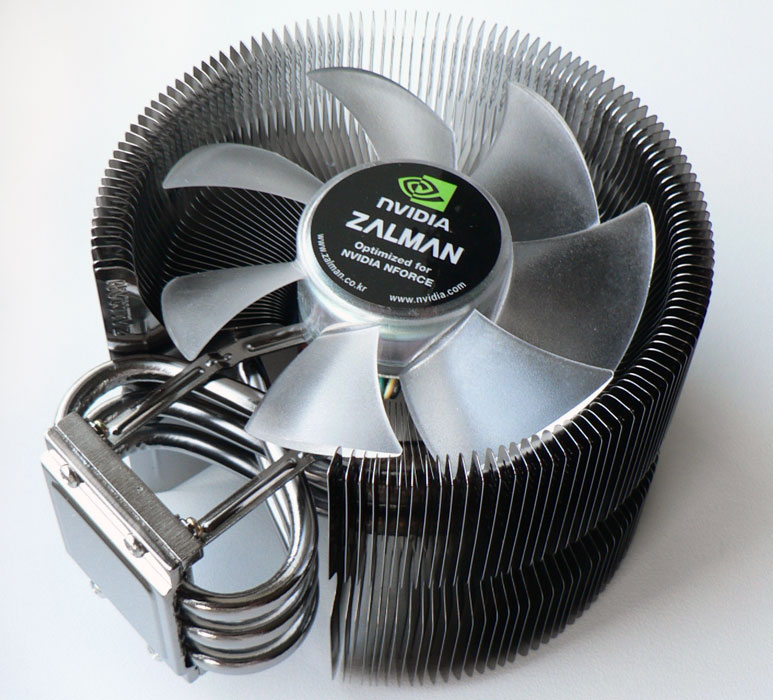

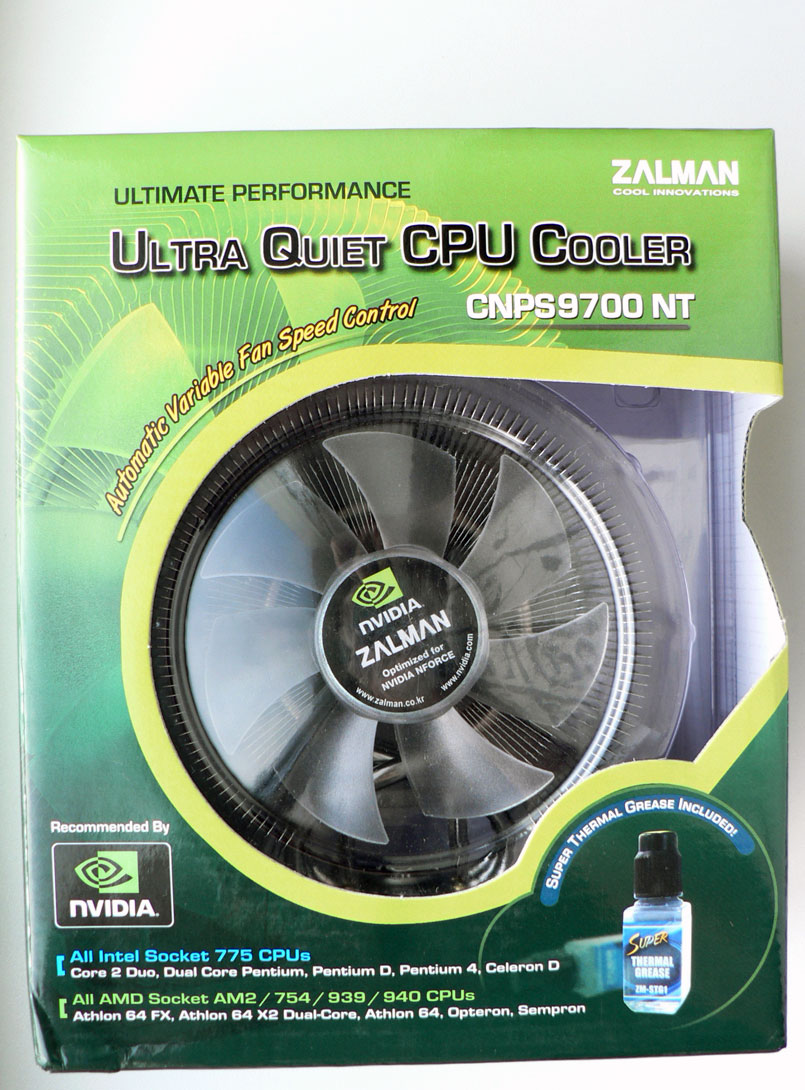

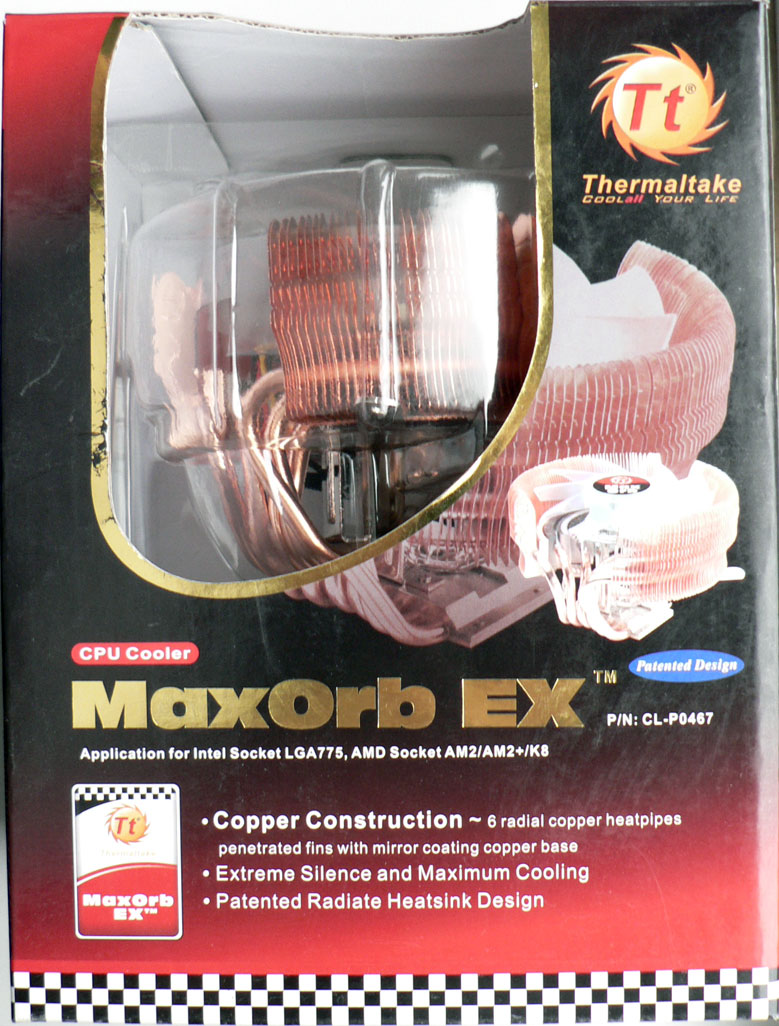

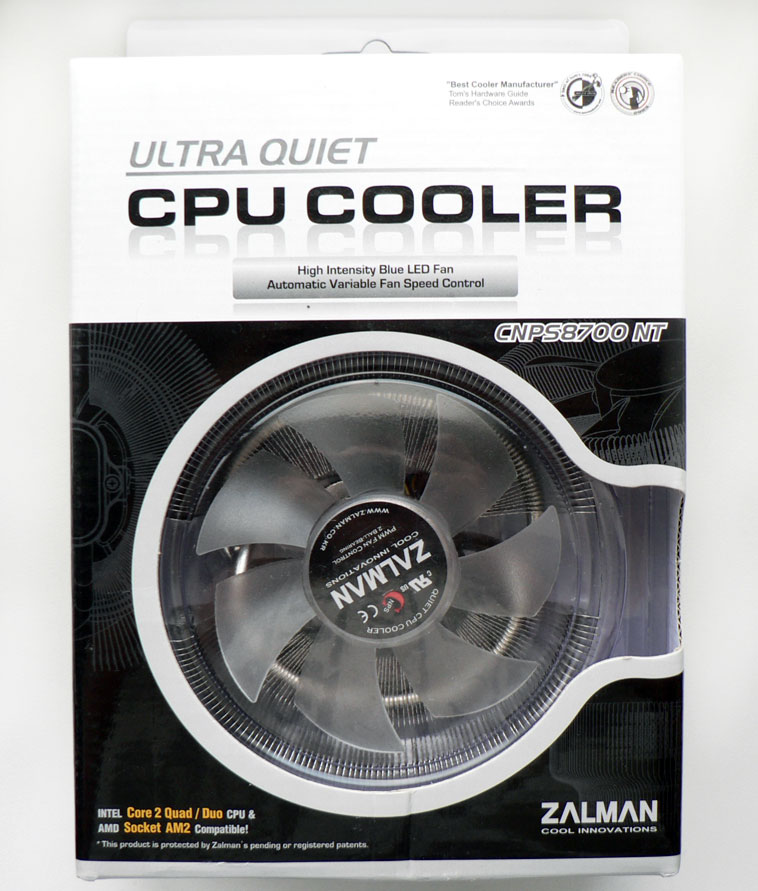

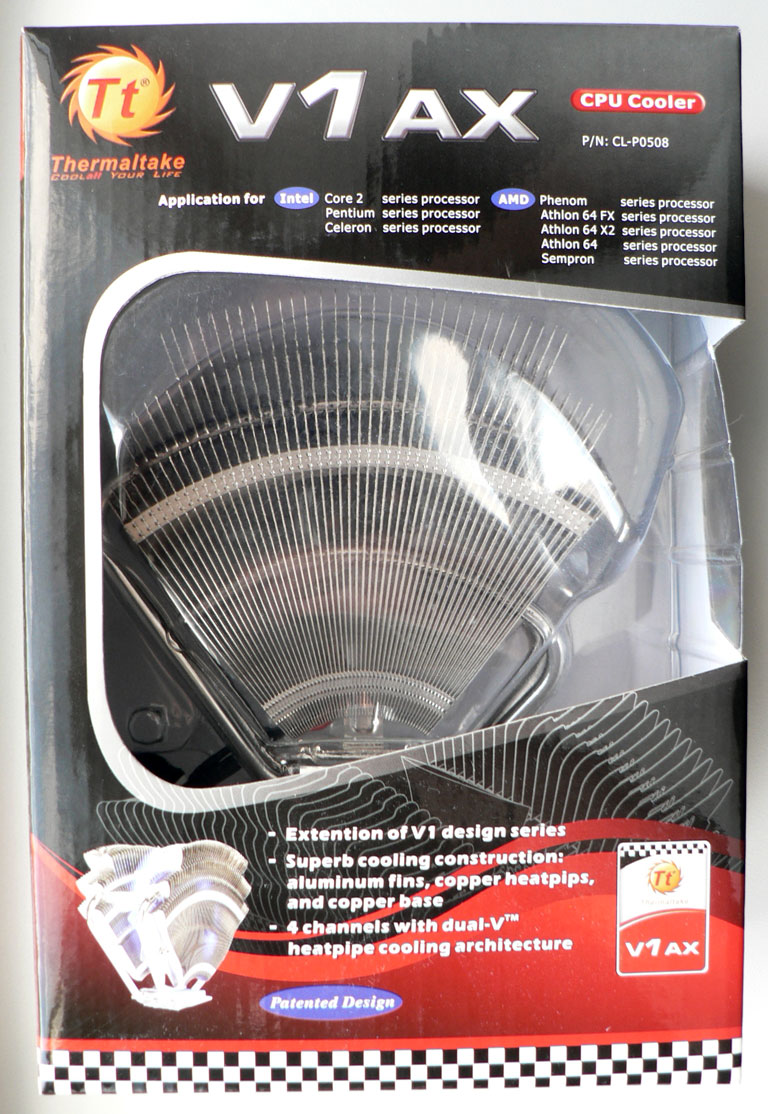

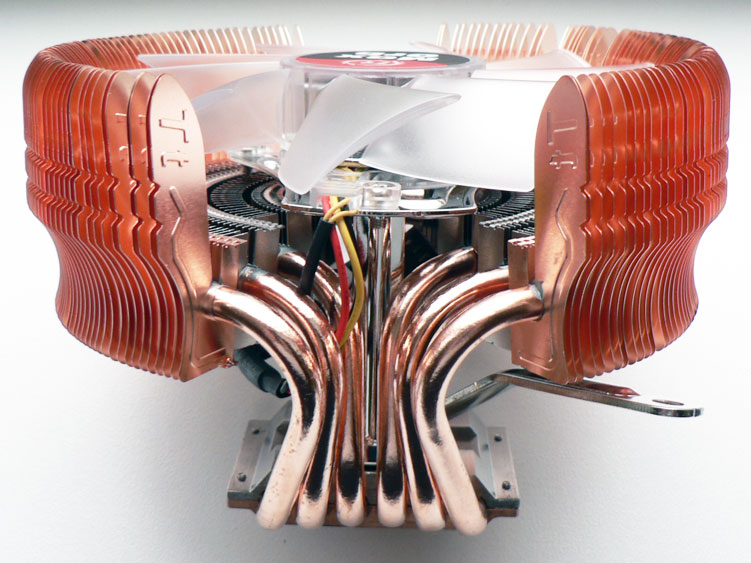

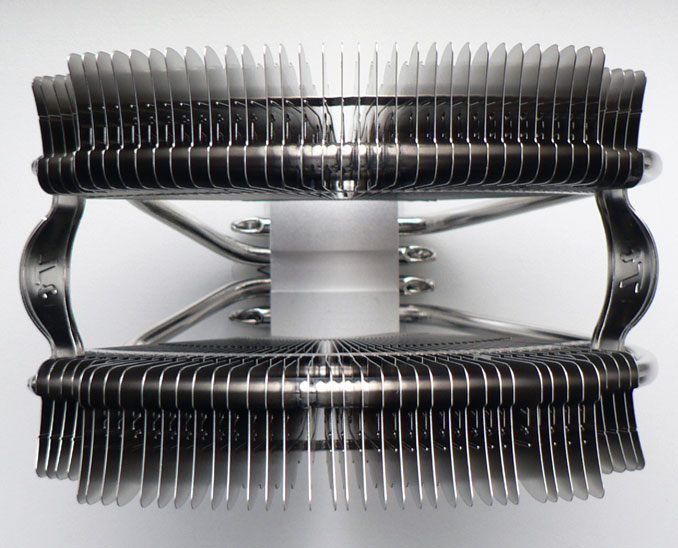

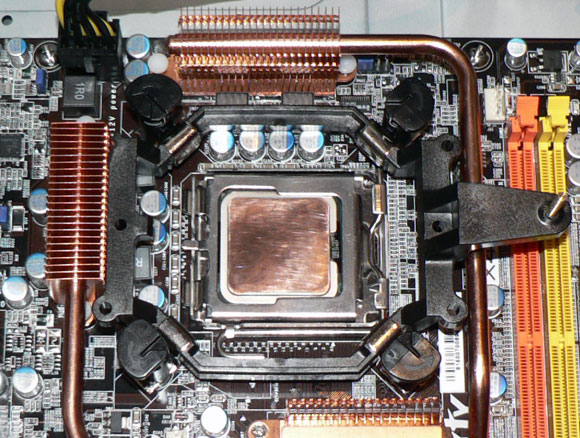

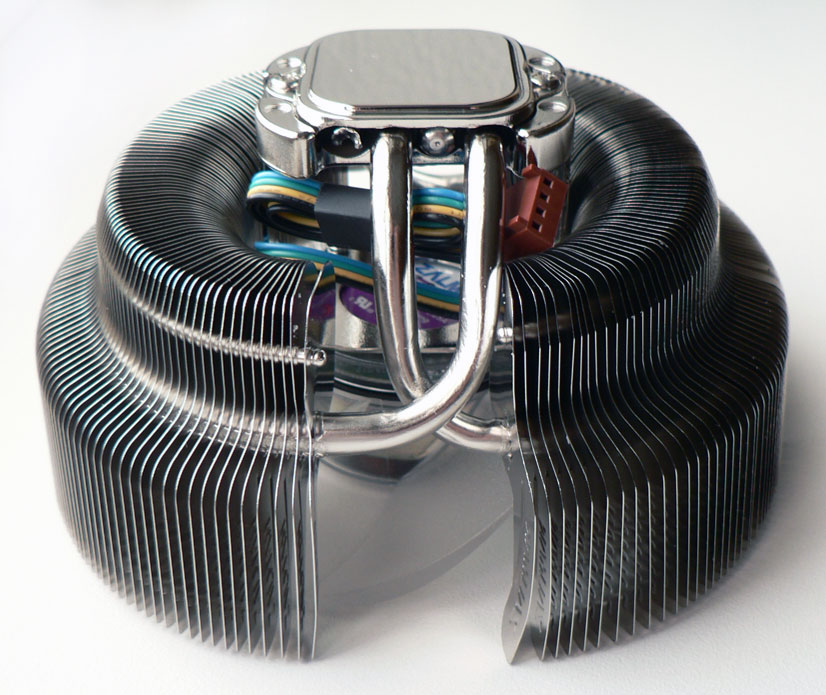

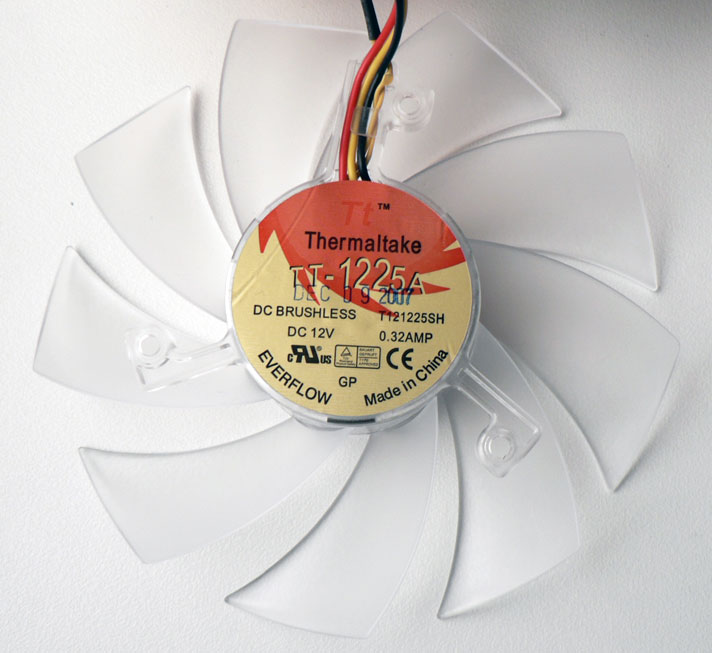

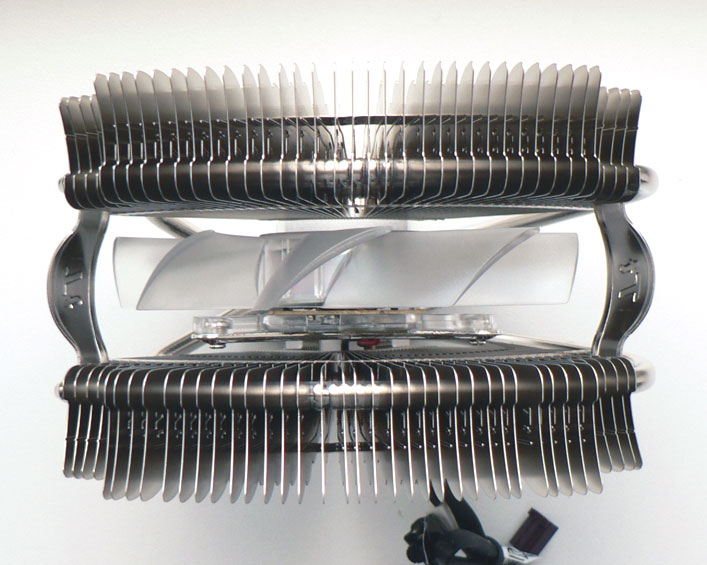

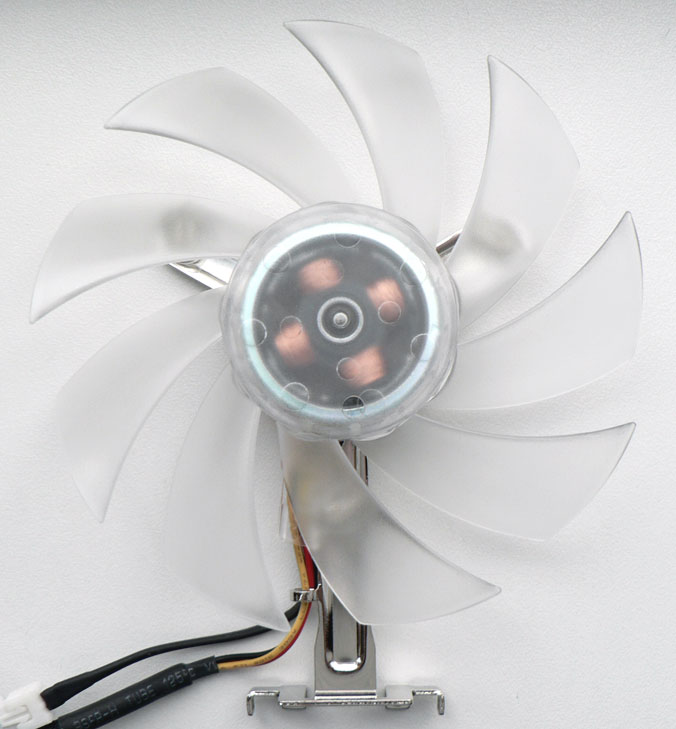

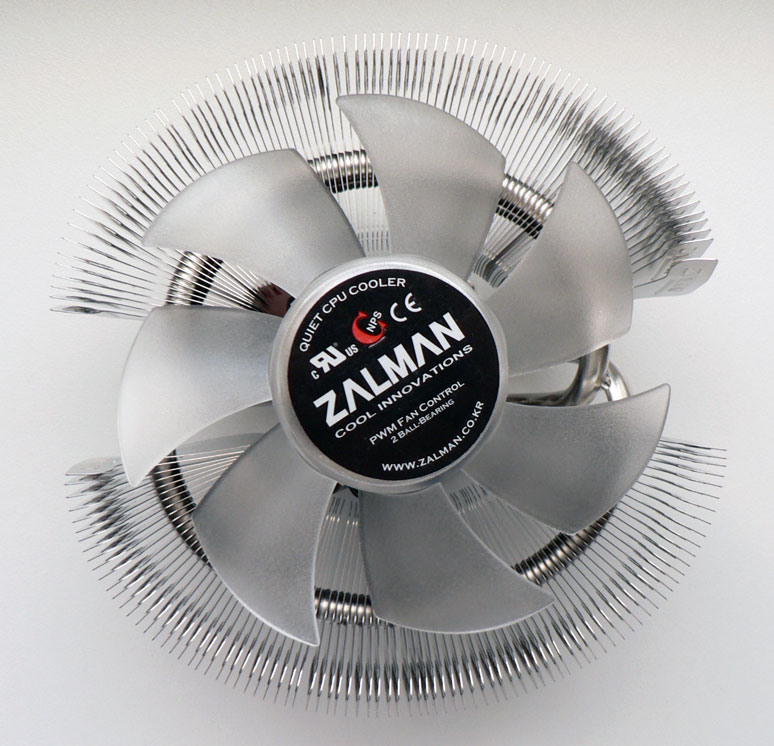

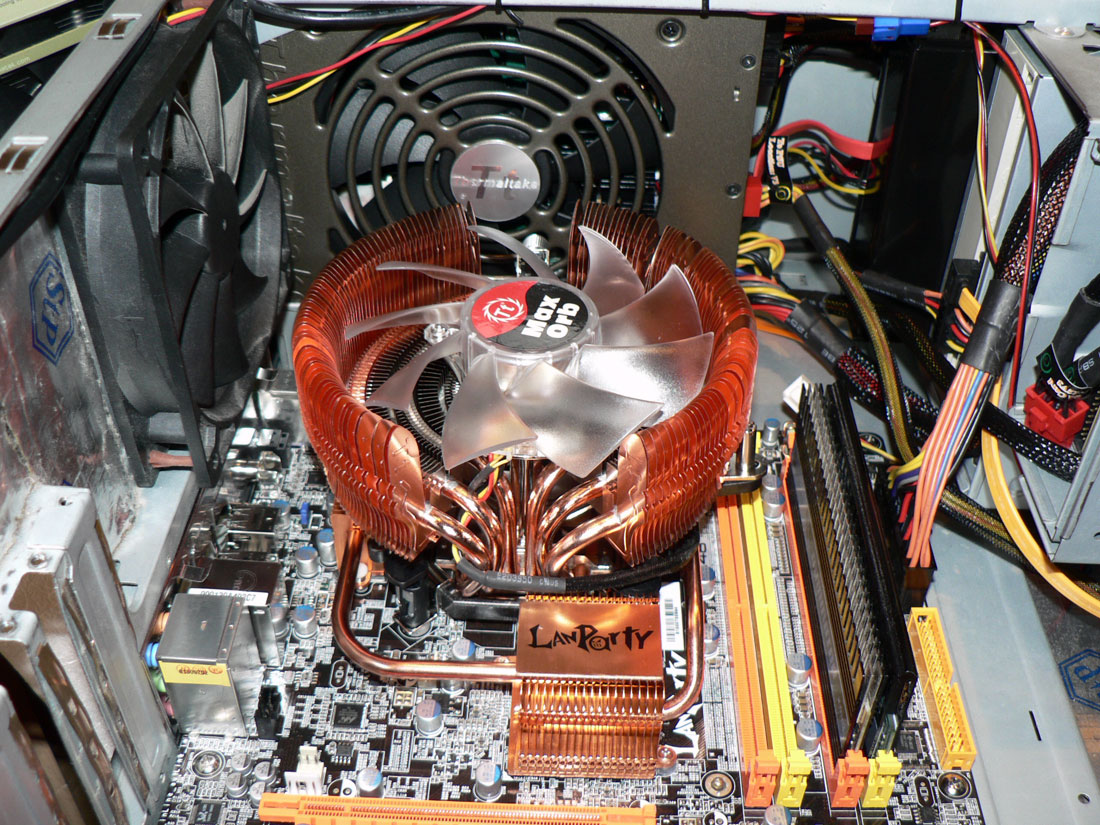

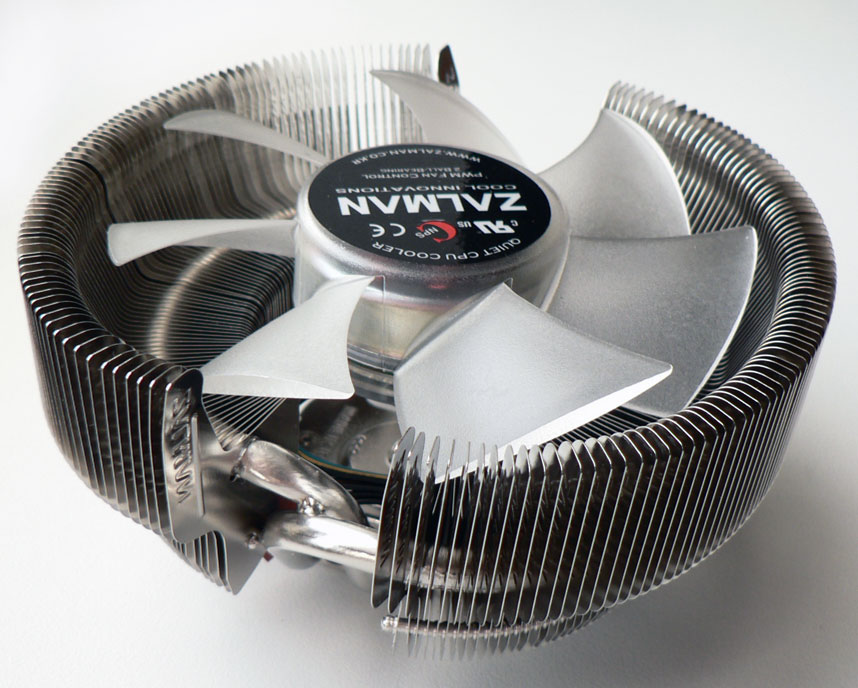

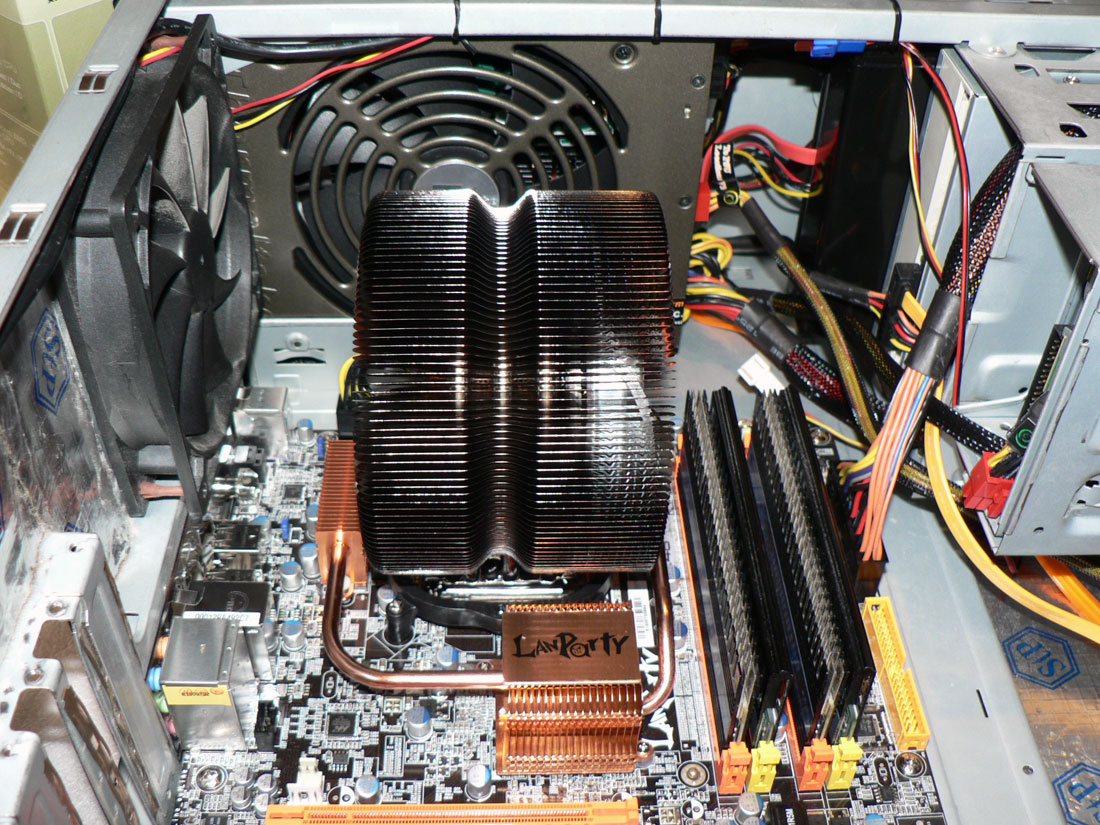

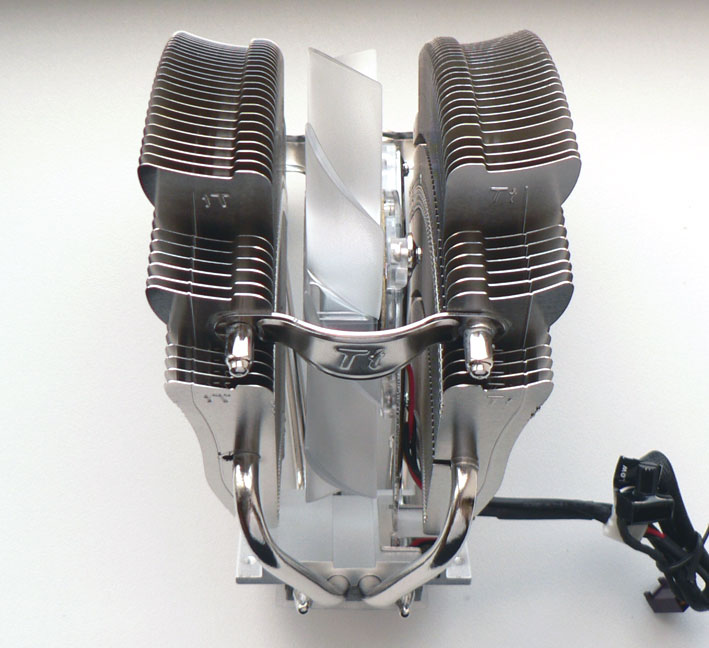

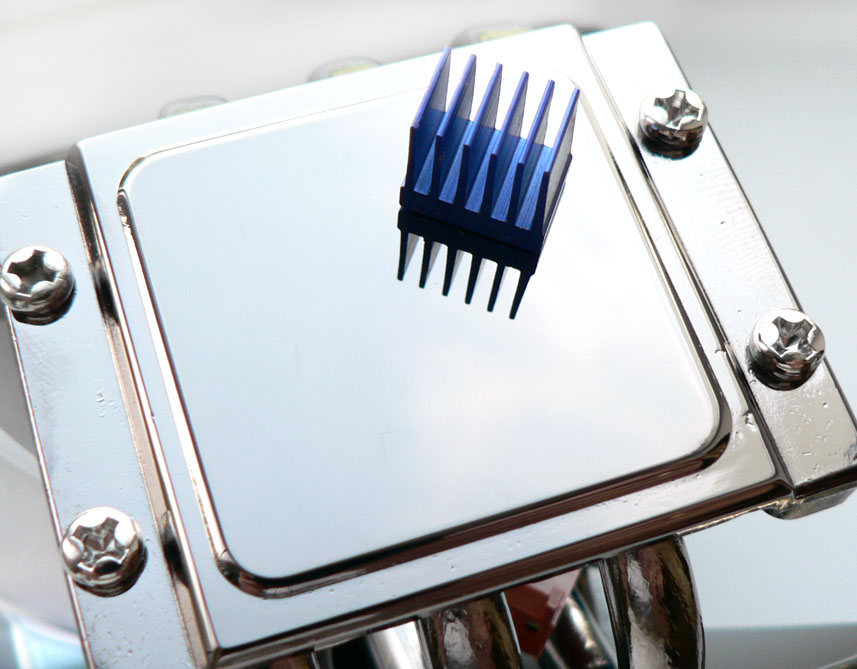

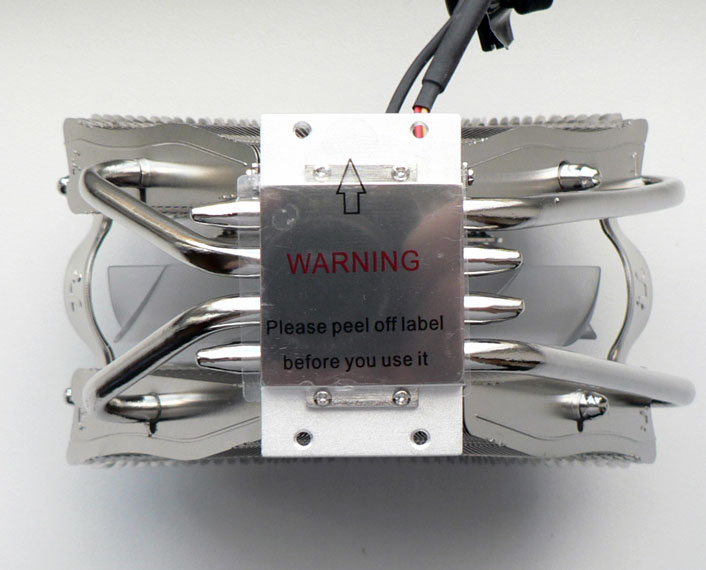

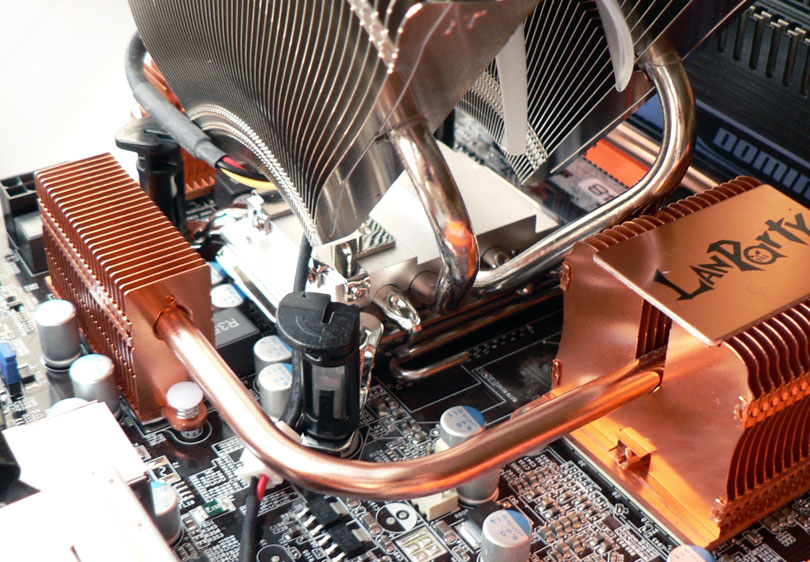

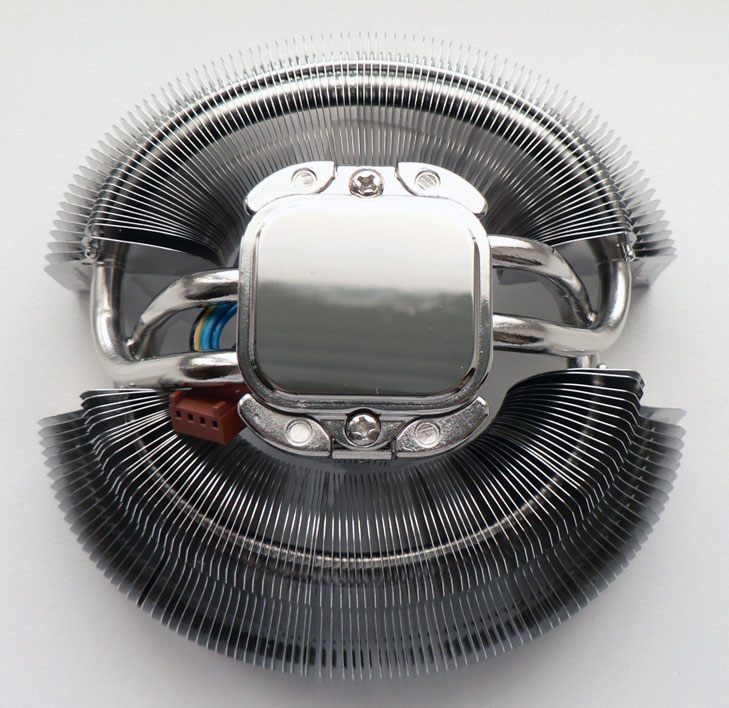

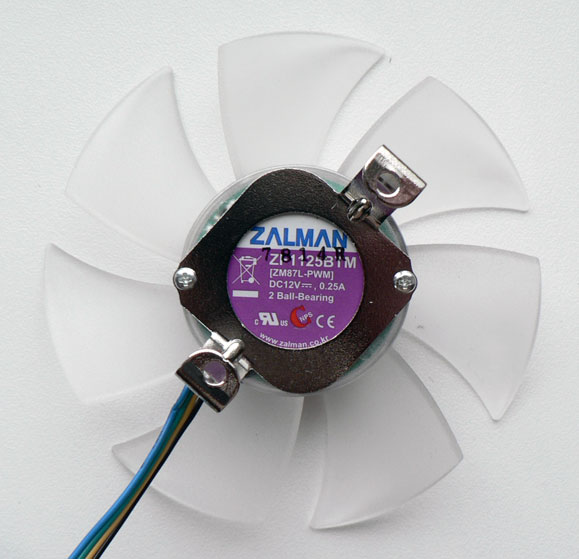

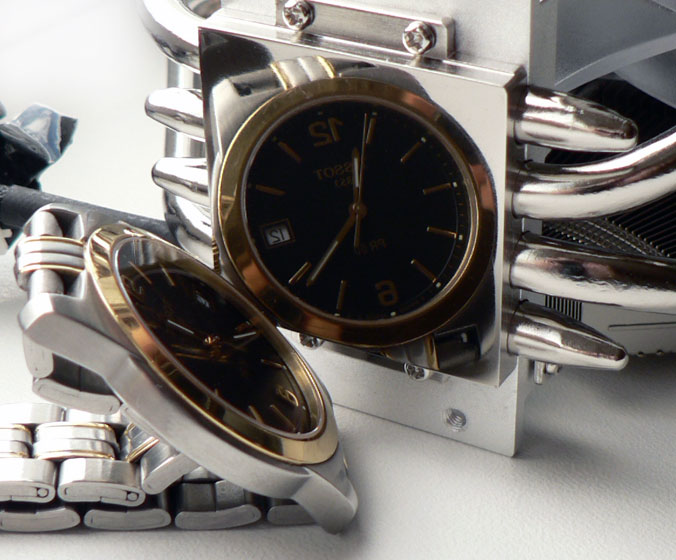

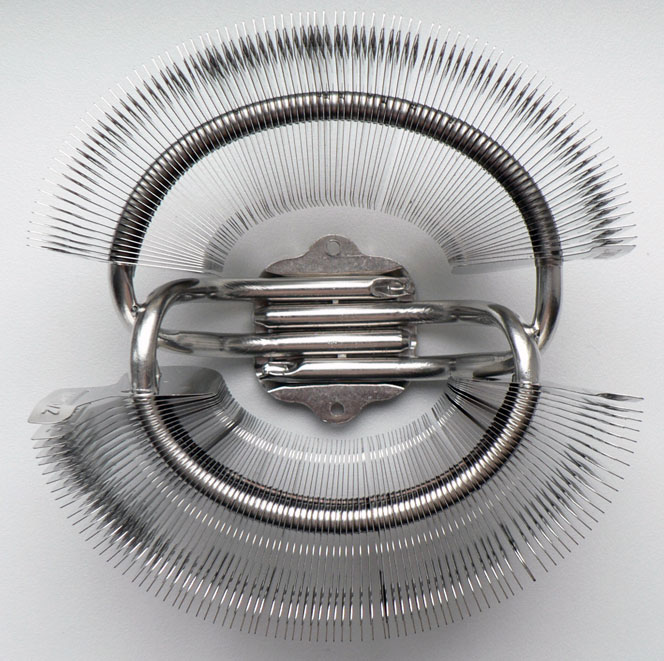

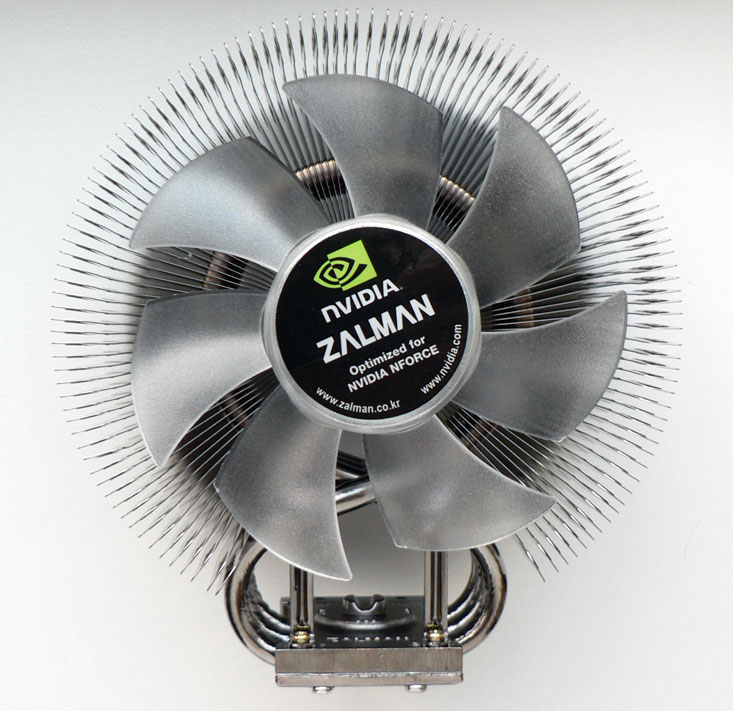

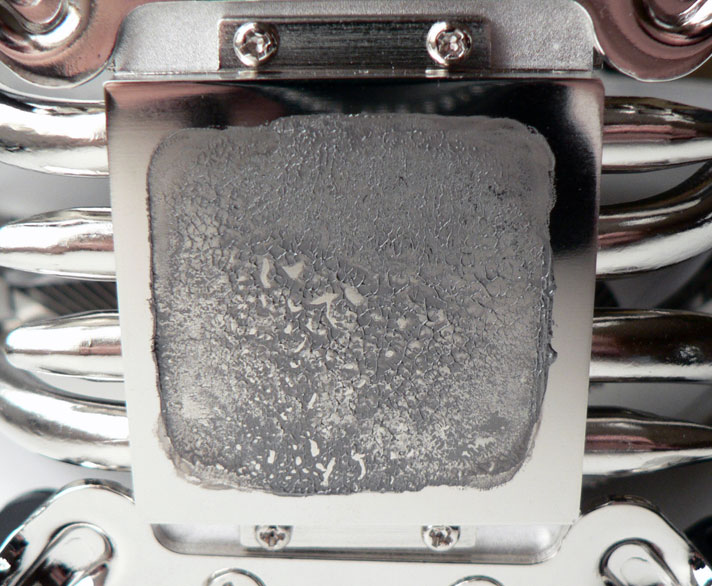

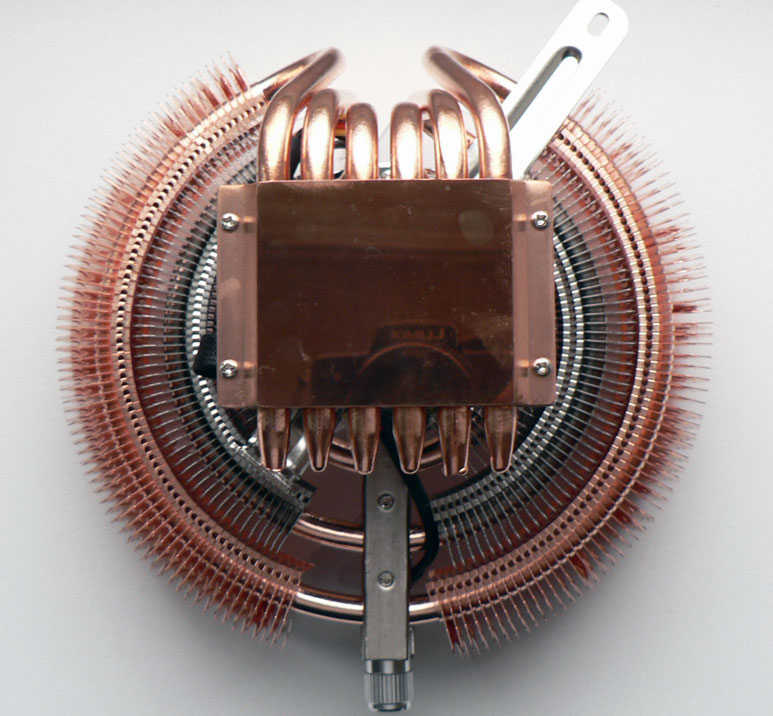

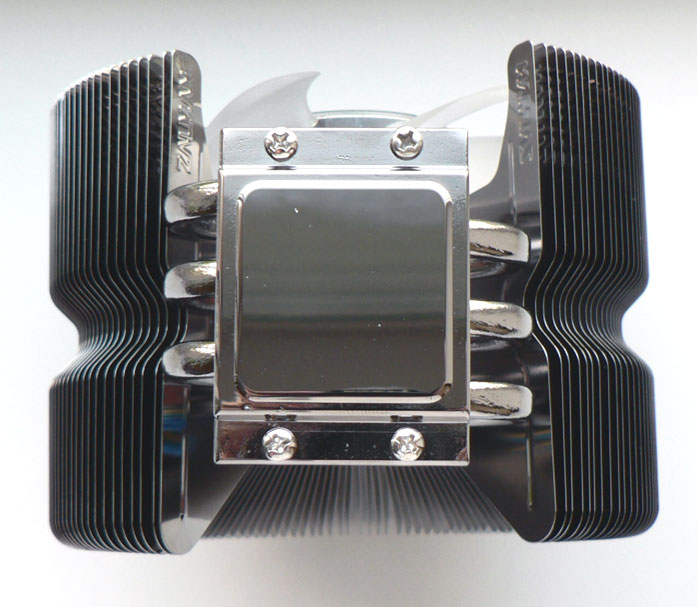

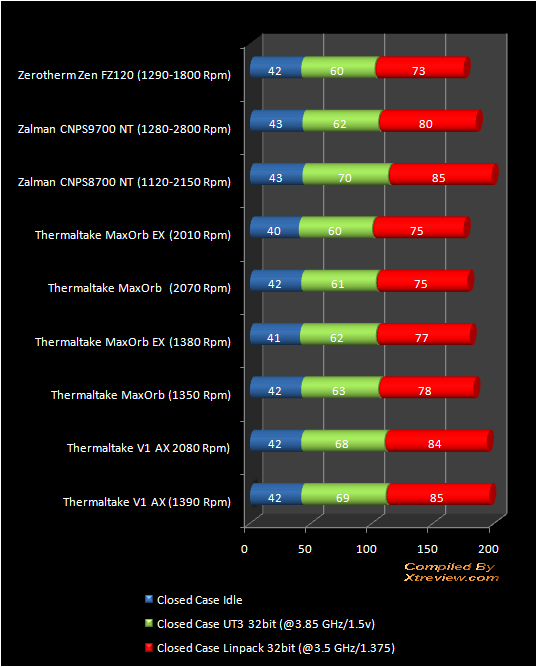

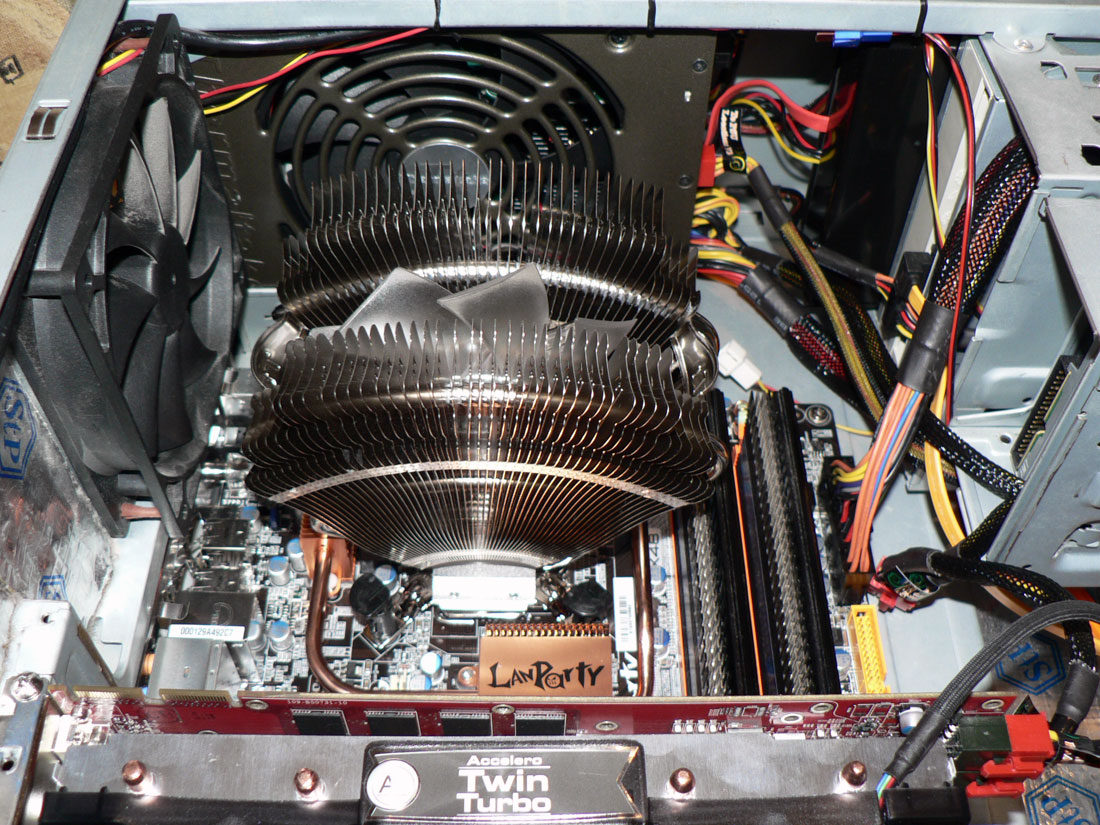

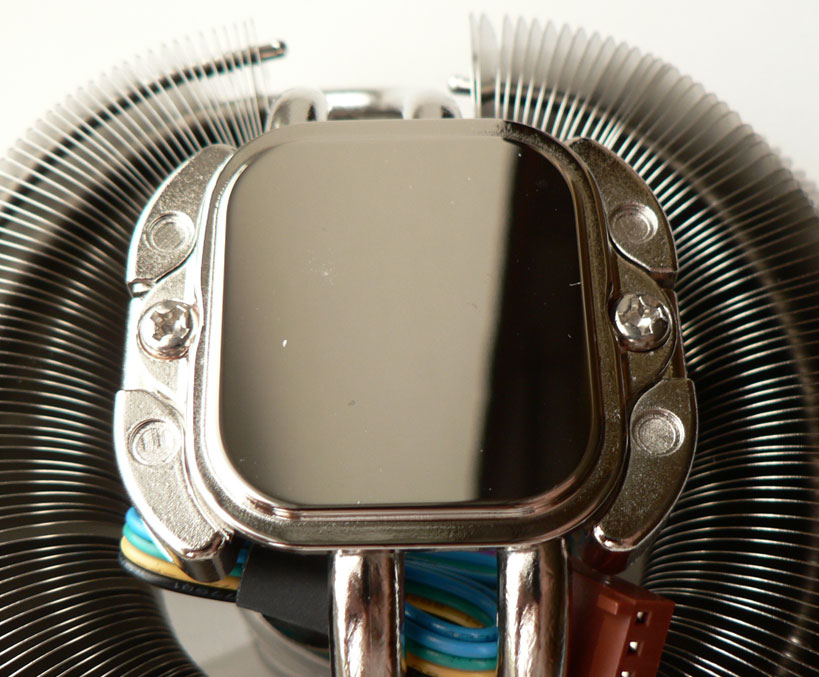

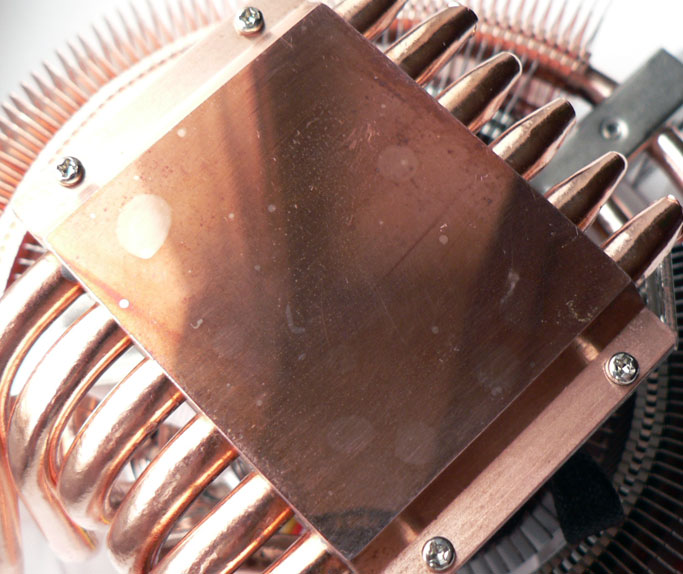

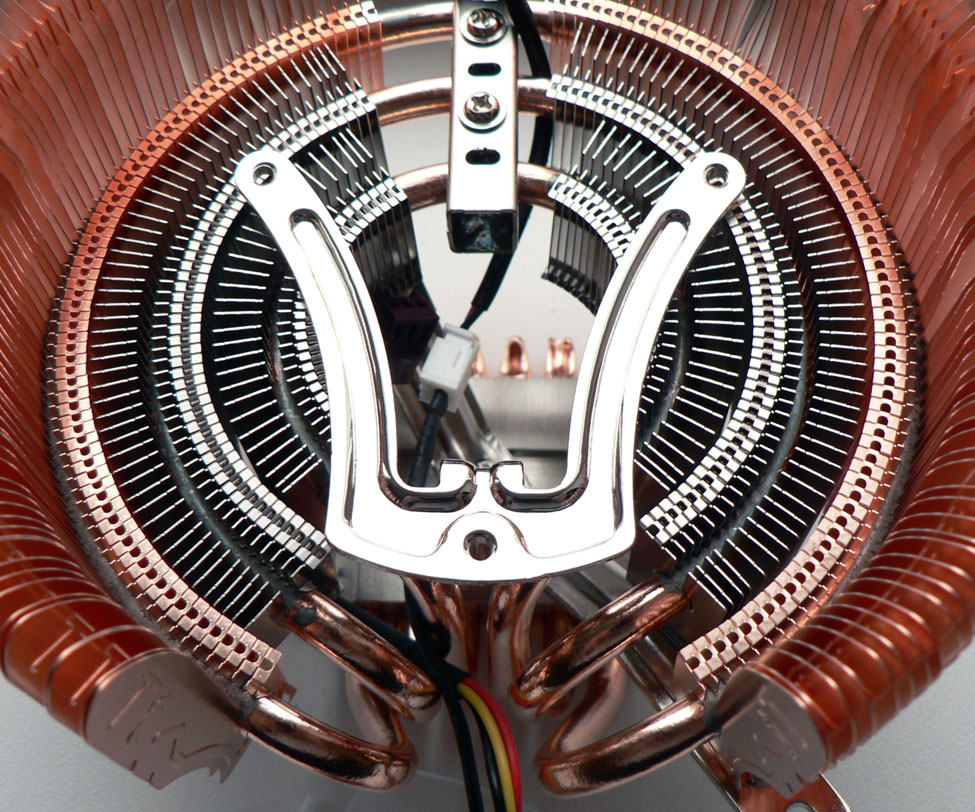

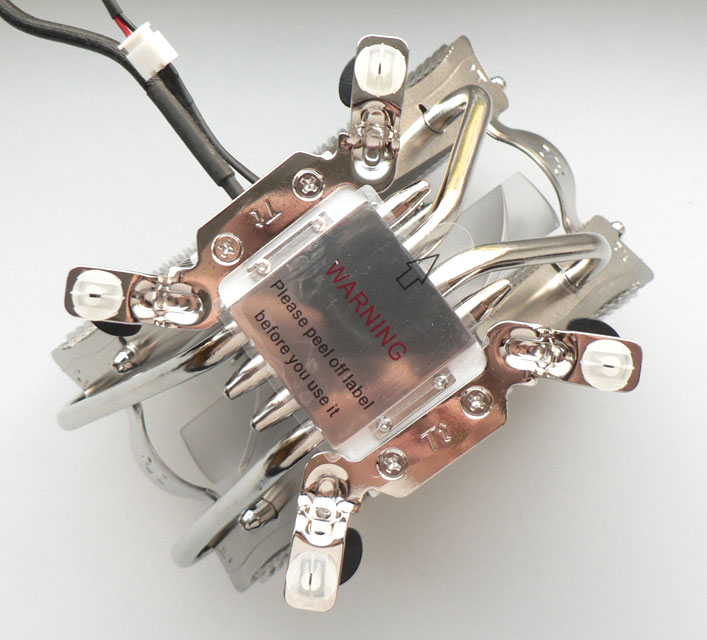

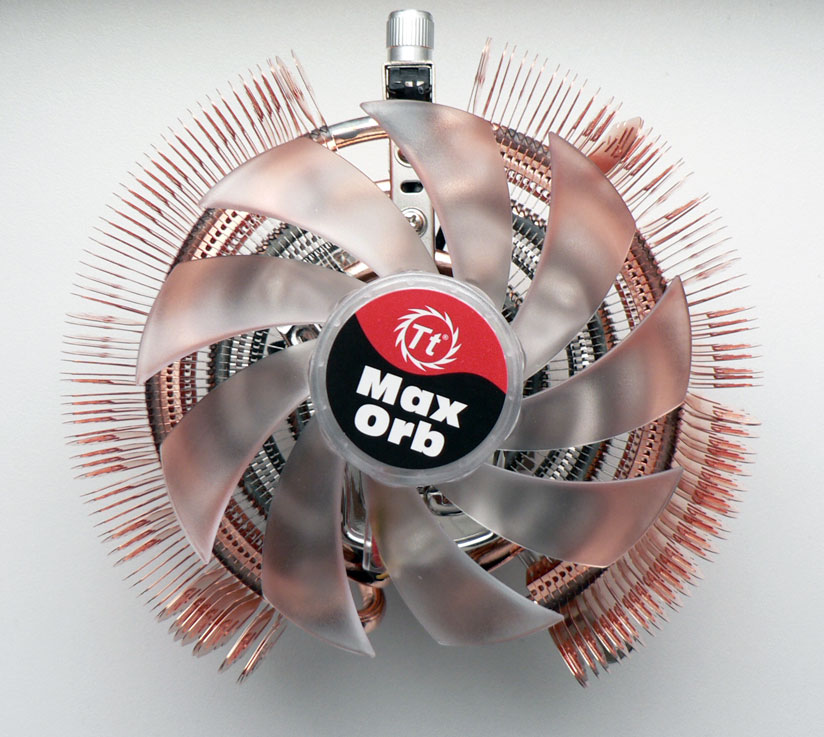

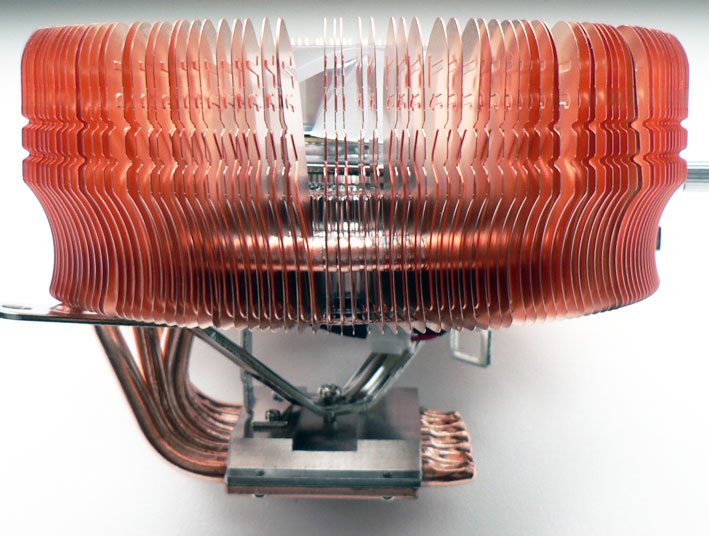

Today we took four beautiful cooler from Thermaltake and Zalman in order to check their efficiency . Thermaltake V1 AX (CL-P0508) Thermaltake MaxOrb EX (CL-P0467)   Zalman CNPS8700 NT Zalman CNPS9700 NT Technical characteristics and recommended cost   Technical characteristics Thermaltake V1 (CL -P0508) Thermaltake MaxOrb EX (CL -P0467) Zalman CNPS8700 NT Zalman CNPS9700 NT Cooler Dimension, (fan), mm 147 x 92 x 143 (110 x 25) 143 X 144 X 95.2 (110 x 25) 120 X 123 X 67 (110 x 25) 90 X 124 X 142 (110 x 25) Used Material fan-shaped aluminum edge 4 heat pipes with 6 mm diameter and copper base aluminum and copper plates 6 heat pipes with 6 mm diameter and copper base copper plate with nickel Two Heat pipes with 6mm diameter and copper base copper plate with nickel 3 copper Heat pipes and copper base Base  sq. cm ~ 4 300 N/A ~3 300 ~5 490 Fan rotation speed , rp/min 1 300 ~ 2 000 (±10%) 1 300 ~ 2 000 (±10%) 1 150 ~ 2 100 (±10%) 1250 ~ 2800 (±10%) Noise Level , DB 16.0 ~ 24.0 16.0 ~ 24.0 17.5 ~ 30.0 (±10%) 17.5 ~ 35.0 (±10%) Air flow, CMF 86.5 (max) 86.5 (max) N/d N/d Static pressure, mmH2O 2.22 (max) 2.22 (max) N/d N/d Default fan voltage ~ 12 (7v starting) ~ 12 (7v starting) 12 12 Current strength, A 0.32 0.32 0.25 0.40 Maximum fan energy consumption , watts 3.84 3.84 3.00 4.80 Fan operating time , hours 50 000 50 000 50 000 50 000 Compatible CPUS LGA 775, Socket 754/939/940, Socket AM2 LGA 775, Socket 754/939/940, Socket AM2 LGA 775, Socket 754/939/940, Socket AM2 LGA 775, Socket 754/939/940, Socket AM2 The total cooler mass, grams 420 580 475 764   fan speed regulator thermal-paste SiMORE fan speed regulator thermo-paste SiMORE fan with PWM control, thermal-paste Zalman CSL850 fan with PWM control, thermal-paste Zalman ZM-STG1 recommended cost, US dollars 45 55 50 65 Here is the system used for testing all those coolers: Motherboard: DFI LANPARTY DK X48-T2RS (Intel x48), LGA 775, BIOS 29/08/2008; Processor: Intel core 2 Extreme QX9650, 3.0 GHz, 1.25 v, L2 2 x 6 Mb, FSB: 333 MHz x 4, (Yorkfield, C0); Arctic silver 5 (for all cooling systems); Video card : HIS radeon HD 4870 GDDR5 512 Mb/256 bits, 750 (250)/3600 MHz; Memory 2 x 1024 Mb DDR2 corsair dominator TWIN2X2048-9136C5D (Spec: 1142 MHz/5-5-5-18/2.1 v); 2 x 1024 Mb DDR2 CSX DIABLO CSXO-XAC-1200-2GB-KIT (Spec: 1200 MHz/5-5-5-16/2.4 v); SATA- II 300 Gb Western digital velociRaptor, 10 000 rp/min, 16 Mb, NCQ; System of soundproofing and cooling HDD: Scythe Of quiet Of drive 3.5 "; Case: ATX ASUS ASCOT 6AR 2B black&Silver ; Power unit: Thermaltake toughpower 1500 watts (W0218) (130- mm fan); Monitor: 24 inches BenQ FP241W (Wide LCD, 1920 x 1200/60 Hz). All tests were executed in the operating system Windows vista ultimate edition x86 SP1. For monitoring the processor and chipset temperature we used the utility speedFan version 4.36 beta 15. Let us pass directly to the obtained results : First let us say a few words about zalman CNPS8700 NT and Thermaltake V1 AX : the effectiveness of cooler practically does not depend on the fan rotation speed , increase in the fan rotation from ~1390 to ~2080 rp/min reduced the processor temperature by 1 degree Celsius under Linpack and to 1~2 under Unreal tournament 3. The leaders of today's testing is zEROtherm ZEN FZ120. Difference is small with other cooler (3 degree ++), but it is reached with smaller cost and lower noise level  . It is clear that all tested today cooler are not quiet. Thermaltake V1 AX and MaxOrb/maxOrb EX with the minimum fan rotation , in the idle regime, function with the moderate noise level  . In this case  ZEROtherm ZEN FZ120 occurs to be the quietest cooler checked today. Related Products :

	xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

Xtreview Support N-Post:xxxx Xtreview Support	PROCESSOR COOLER ROUND UP
	Please Feel Free to write any Comment; Thanks
