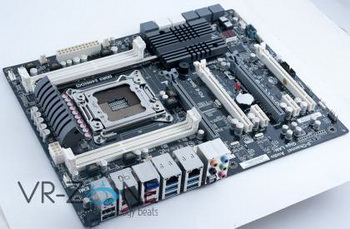

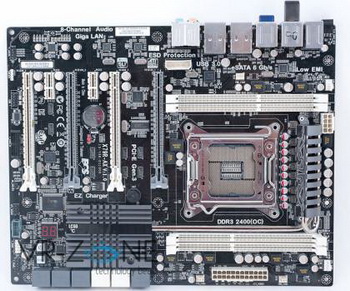

The motherboard X79R-AX Black Series, presented last week by ECS, refers to the segment of productive desktop. The Model-based on chipset X79 Express is designed for Intel Core i7 processors LGA 2011, code-named Sandy Bridge-E.
The processor power system is organized on 14-phase scheme. Four slots DIMM (two on each side of the CPU socket) supports up to 32 GB DDR3 memory in quad mode. The motherboard has four SATA 3Gb / s ports and eight SATA 6 Gb / sec.

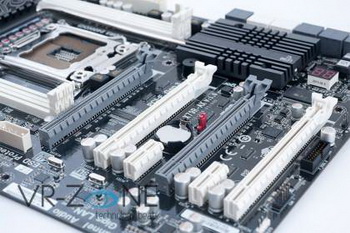

Expansion involves the installation of two cards with PCI-E x1 interface and four graphics cards with PCI-E 3.0 x16 interface. Electrically slots can operate in the configuration x16/NC/x16/NC (with one or two cards), x16/NC/x8/x8 (three cards), x8/x8/x8/x8 ( four video cards).
There are four USB 3.0 ports on the rear panel and two more - through the pins on the board, as well as eight-channel audio codec with optical S / PDIF. The model is equipped with two adapters, Gigabit Ethernet, Bluetooth and Wi-Fi 802.11n.
There are various diagnostic indicators point to measure the power, thermometer on the heatsink of chipset, as well as the reset button CMOS, Power and Reset. Radiators on chipset and voltage regulators are linked with a heat pipe with a diameter of 6 mm. Related Products :
|
