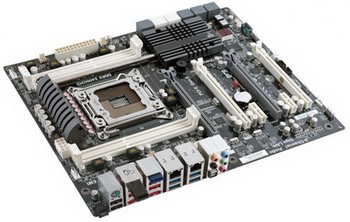

Today appeared new images of the motherboard ECS X79R-AX, built on Intel X79 chipset.
The motherboard support CPU Intel LGA2011, Sandy Bridge-E. It is equipped with four slots for RAM DDR3 (Dual-Channel memory support setting the frequency up to 2400 MHz), with four slots PCI Express x16 (two of them operate in the x16, two using x8), as well as two PCI- E x1, eight-port SATA 6 Gb / s and four SATA 3 Gb / sec. ECS X79R-AX is one of the few motherboards for Sandy Bridge-E processors, supporting a large number of SATA ports. Another interesting feature is the new built-in module that supports both Bluetooth, and Wi-Fi 802.11b/g/n.

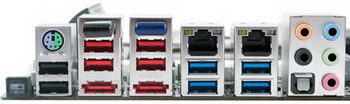

On the rear X79R-AX panel there are four-port USB 3.0 and eight USB 2.0, PS / 2 port, two RJ-45 and S / PDIF and standard 3.5 mm jack . In addition the motherboard is equipped with hardware power button, reset indicator and debugging.
