At March exhibition CeBIT 2012 ASUS showed a motherboards based on chipset Intel Seventh Series , which attracted attention. The solution is called TUF Sabertooth Z77, and was officially presented yesterday.

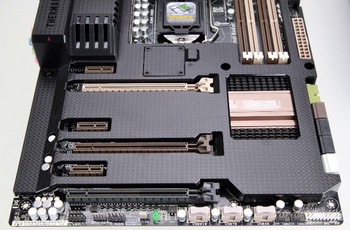

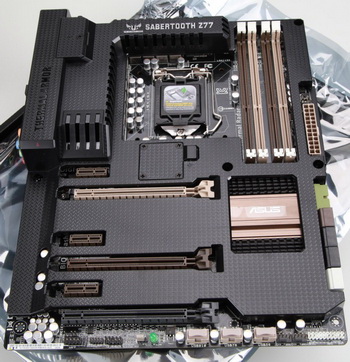

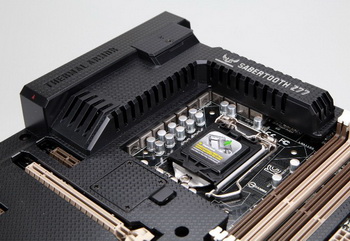

There were no significant changes : almost the entire surface of product is closed. There are two places to install a 40-mm fans, which are necessary to improve the heat removal from the PCB components .
>

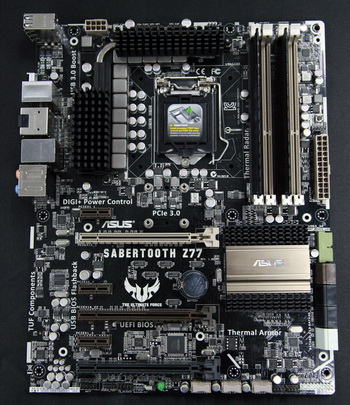

Expansion slots are two connectors PCI Express 3.0 x16, three PCI Express x1 slots and one PCI Express x16, performance is limited to four lines version 2.0 (connected to the IC chip).
There are four SATA 6 Gb / s and the same number of SATA 3 Gbit / s ports. I / O includes four ports USB 2.0, four-port USB 3.0, two ports, eSATA, LAN, HDMI video output and Displayport, a set of audio connectors and CMOS reset .
The list of proprietary technologies implemented in the TUF motherboards series and Sabertooth Z77, in particular, can be found on the official website , which completely covers the products mentioned range.
