ASUS presented TUF Sabertooth Z170 Mark 1 motherboards : TUF Thermal Armor, TUF Fortifier, TUF ICe, TUF Thermal Radar 2 and TUF Detective 2 .

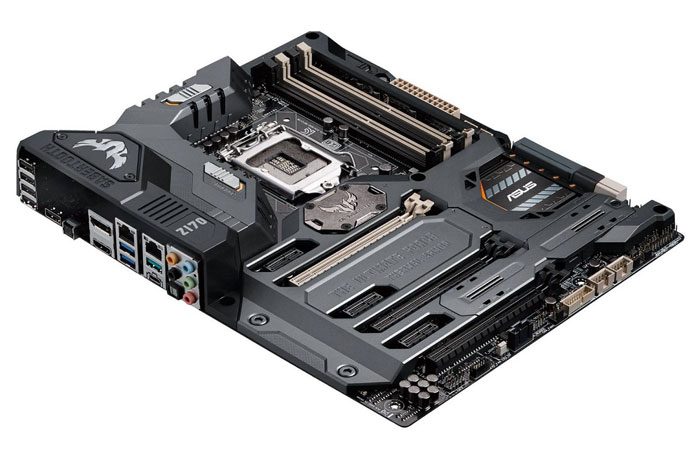

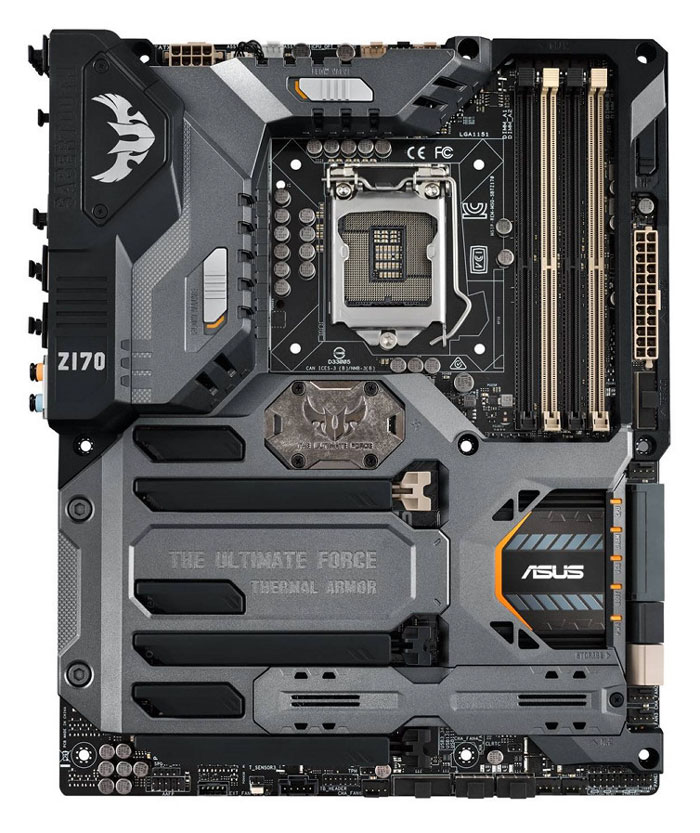

ASUS TUF Sabertooth Z170 Mark 1, which the company unveileda few days ago, brings the platform Intel Skylake (LGA 1151) all the best that has been achieved in series TUF for the past years. There are five-year warranty on the product. The board got four slots for memory DDR4 2400/2133 MHz with an authorized maximum amount of 64 GB. On board are three slots PCI Express 3.0 x16, two of which can only be operated in the configuration x8 (or one of them x16) slot and three PCI Express 3.0 x1. The video input: VGA, HDMI, and DisplayPort 1.2 (4K possible). The sound represented eight-channel solution Realtek ALC1150.
To connect drive there are 6 SATA 6 Gb / s ports and 2 SATA Express 10 Gb / s. Network - Intel I218-V Gigabit Ethernet. There is port USB 3.1 Type-C (balanced) and one port USB 3.1 Type-A (normal). In addition, there are six USB 3.0 ports, and 8 ports USB 2.0.

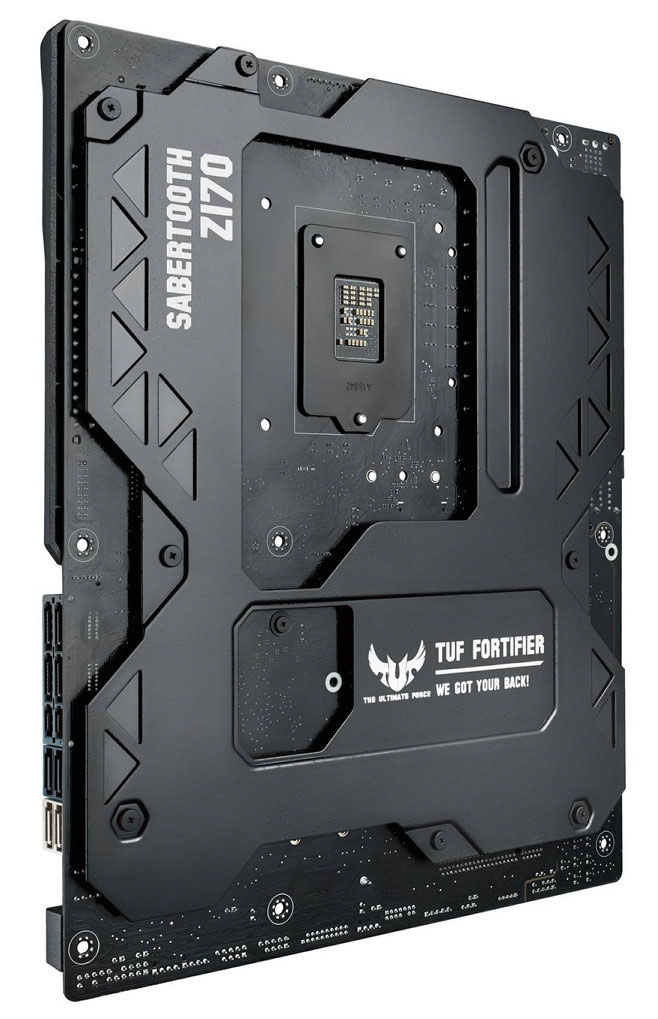

It support technologies Thermal Armor with Flow Valve (special design enclosures plus the adjustment of the two case fans to the "right" blowing elements on the board keeps the temperature VRM-elements at 20 degrees Celsius), Thermal Radar 2 (12 plugs for the fans and a set of scattered on the board temperature sensors), TUF Ice (temperature monitoring), TUF Fortifier (reinforcing plate below the board to withstand loads up to 10 kg and reduces the temperature by 18%), TUF Engine, TUF Components (Japanese capacitors ), TUF ESD Guards 2 (protection against static electricity), TUF Detective 2 (working with applications for the monitoring board on smartphones and tablets), Dust Defenders (plastic cover on the port). Related Products :
|
