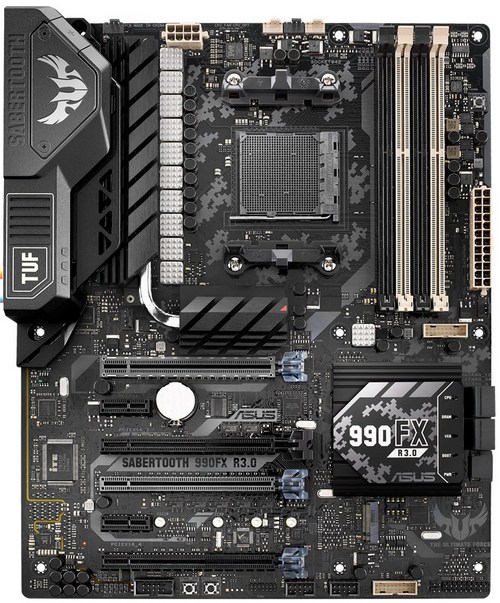

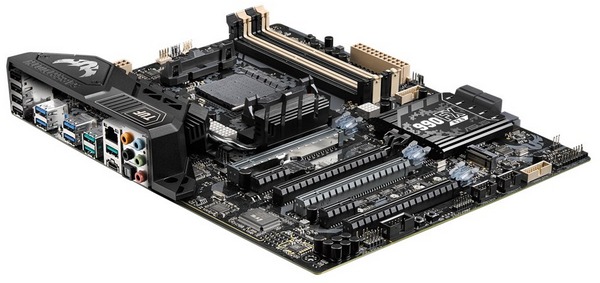

Processor socket Socket AM3 + appeared back in 2011, but it has not lost its relevance today. And some manufacturers and are all new motherboards with the CPU socket. For example, the Asus company now produces motherboard TUF Sabertooth 990FX R3.0, oriented to overclockers and enthusiasts who prefer AMD processors.
Novelty is based on the well familiar to us AMD 990FX and SB950, and supports processors with a TDP of 220 watts. The motherboard power supply system includes 8 + 2 phase, and has an 8-pin connector for the CPU power. TUF Sabertooth 990FX R3.0 received four slots for DDR3 memory modules, which you can install modules totaling up to 32 GB, running at up to 1866 MHz. Set includes three expansion slots slot PCIe 2.0 x16, which can operate in x16 / x16 mode or x16 / x8 / x8, and one slot PCIe 2.0 x16, working at x4 mode (second from top) and two slots PCIe 2.0 x1. The board supports ligament 3-Way SLI and CrossFireX.
To connect the storage device has five ports SATA 3.0, as well as M.2 slot (SATA and PCIe). For network connections to the TUF Sabertooth 990FX responsible Gigabit Intel I211, and at the heart of the audio system, which is separate from the rest of the board, is the codec Realtek ALC1150. On the back , there are three port USB 3.1 Type-A and one Type-C, as well as four USB 3.0 ports (four more USB 3.0 ports can be displayed on the front panel). During the operation of these connectors is responsible external controller ASMedia. We should also note the presence of MemOK buttons! and Power, and the other tools that are useful during overclocking.
Asus provides the novelty warranty of 5 years. The motherboard TUF Sabertooth 990FX R3.0 soon will be on sale. Related Products :
|
