POSTER: computer news || GEFORCE 8600GT GIGABYTE SILENT-PIPE 3

DATE:2007-04-17

Yesterday we reported about the new series (geForce 8500/8600: version from foxconn, Twintech, GIGABYTE, Chaintech, Leadtek and BFG), which was released together with the announcement of graphic processors families geForce 8500 and 8600. Today GIGABYTE company presented the middle class model GIGABYTE GV-NX86T256D (GeForce 8600GT GPU) with passive cooling system.
Besides model GV-NX86T256D GIGABYTE has more interesting newer development. This is the cooling system from the third generation : silent-Pipe 3, which is presented together with the release of geForce 8600GTS : GIGABYTE GV-NX86S256H.

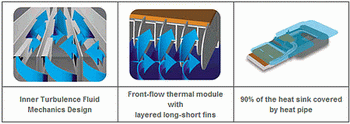

Silent-Pipe 3 is the logical continuation of systems silent-Pipe and Silent-Pipe II, which are recommended. Taking in account the experience with previous developments GIGABYTE knew how to create effective and passive cooling system . Silent-Pipe 3 has the so-called design : inner turbulence fluid mechanics design, which use the turbulence principle , radiator is collection from several layers with different form and length, which converts the air flows in turbulent flows. This, in turn, accelerates the heat removal process from radiator .

GIGABYTE silent-Pipe 3 geForce 8600GT:

Model: GV-NX86S256H
Passive cooling system silent-Pipe 3 (Advanced screen-Cooling + turbulent design)
Graphic processor: NVIDIA geForce of 8600GTS
Memory capacity: 256 mb. (GDDR3, 16Mx32)
Memory access Interface: 128- bit

Support technologies SLI and PureVideo
Support directX 10 and OpenGL 2.0
Max. resolution : 2560x1600
System bus : PCI- E x16
D -SUb, DVI- I, TV-out
Support HDCP

Just as with model GV-NX86T256D in delivery set with GV-NX86S256H (GIGABYTE silent-Pipe 3 geForce 8600GT) is included the game supreme commander.
