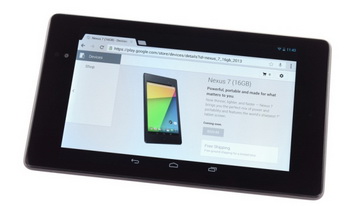

This week, Google introduced the Nexus 7 tablet computer second generation. Its sales are expected to begin only on 30 July.

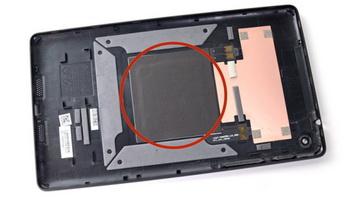

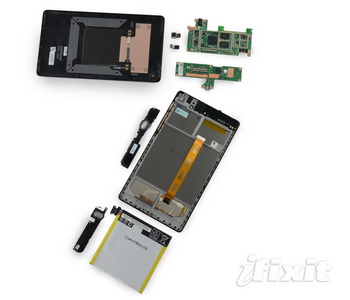

As it turned out, the tablet is quite easy to disassemble and, accordingly, to fix . First, the cover is NFC antenna and the coil through which the tablet can produce energy without wires. Second, the cover glass is bonded to the liquid crystal panel to separate them you need to use a heat gun. But the other part of the tablet are secured with conventional screws, so problems with the selection of a screwdriver in homegrown artists will arise.

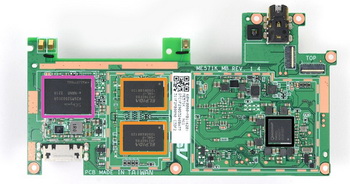

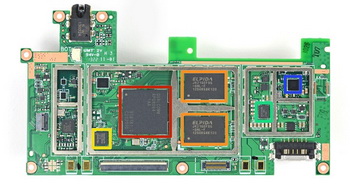

Motherboard device is compact enough and includes a processor Qualcomm APQ8064, four memory chips Elpida total of 2 GB, video transmitter, controller wireless charging, wireless adapter, flash memory SK Hynix 16 GB, and a chip Qualcomm PM8921, the control power supply.
Final Evaluation of maintainability second-generation Nexus 7 - 7 out of 10 points.

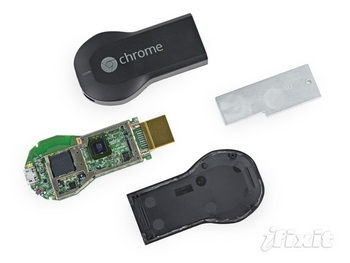

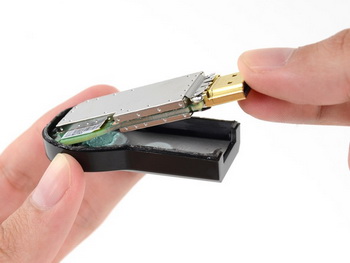

The experts also looked at the broadcast device Chromecast. On a small board processor Marvell DE3005-A1, 512 MB RAM, 2 GB of non-volatile memory chip and AzureWave AW-NH387, providing wireless performance. It is interesting that the device needs to be connected to an external power source for this in the package provided USB-cable and an adapter.
According to iFixit, the device does not need to assess the maintainability because it had nothing to mend.
Recall that Google Chromecast cost only $ 35, the device is available immediately. Related Products :
|
