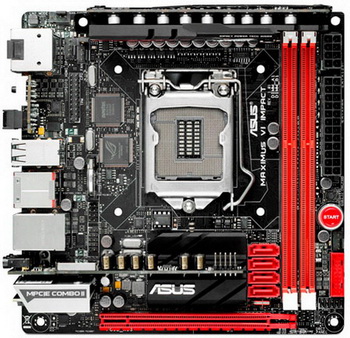

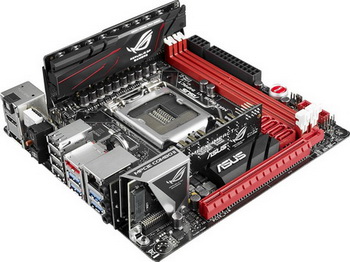

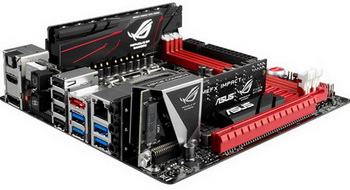

Motherboard manufacturer - Asus company plans to start selling its next LGA1150- Maximus VI Impact. The device is based on chipset Intel Z87, support Intel Core 4th generation (Haswell) and it is the first model of ROG-size mini-ITX.
Motherboard Maximus VI Impact has a digital control (technology Impact Power) power system with 8 +2 phase CPU voltage regulator and memory, is equipped with throttles BlackWing (current up to 60 A) and solid capacitors.
There are two slots for dual-channel RAM DDR3 (up to 32GB), a slot PCI-Express 3.0 x16, four SATA 6 Gb / s ports, ESATA port 6Gb / s, six ports USB 3.0 (four - rear, two - via headers), six ports USB 2.0, HDMI and DisplayPort outputs. Also available 802.11ac Wi-Fi and Bluetooth 4.0 adapters (via expansion cards mPCIe Combo II), Gigabit Ethernet controller, a slot M.2, designed for solid state drives, sound card SupremeFX Impact, characterized by a better signal / noise ratio - 115 dB.
