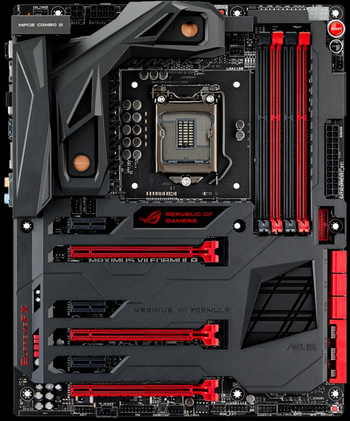

ASUS announced the motherboard Maximus VII Formula, built on the Z97 chipset and designed for use with Intel processors in LGA 1150. Mainboard characterized by typical features of Republic of Gamers, and the main features of which awarded ASUS Maximus VII Formula became a hybrid cooling system of power system CrossChill, audio system SupremeFX, two-sided protective cover ROG Armor and a number of proprietary technologies such TrueVolt 5V, GameFirst III and Extreme Engine DIGI + III.
CrossChill base cooling system made of corrosion of copper. ASUS claims that when using liquid cooling temperature of the motherboard VRM area can be further reduced to 23 degrees Celsius.
In general, Maximus VII Formula offers four DIMM slots for RAM, officially declared support for DDR3 modules with an effective rate of up to 3300 MHz. There are two slots PCI Express 3.0 x16 ("16x" or "8x 8x +"), one slot PCI Express 2.0 x16 (electrical x4), three slots PCI Express x1. Storage devices can be connected via four SATA 6 Gb / s, two ports SATA Express (they can also be used as an additional four SATA 6 Gb / s) and slot M.2, which is made on a separate daughter board.

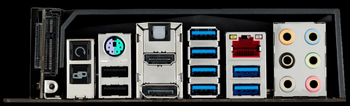

The latter, incidentally, also contains Wireless Adapter Wi-Fi and Bluetooth. Board has a total of 8 ports USB 3.0, 6 x USB 2.0, HDMI video output and DisplayPort, port Gigabit Ethernet.
Originally Maximus VII Formula will be sold bundled with a computer game Watch Dogs priced at $ 369, a little later it will be available for $ 319 without any additions.
