Cowcotland site published photos of three motherboards based on chipset EVGA X99, designed to work with processors Haswell-E. X99 Classified will be priced at $ 400, X99 FTW is estimated at $ 280, and X99 Micro can be purchased for $ 250.

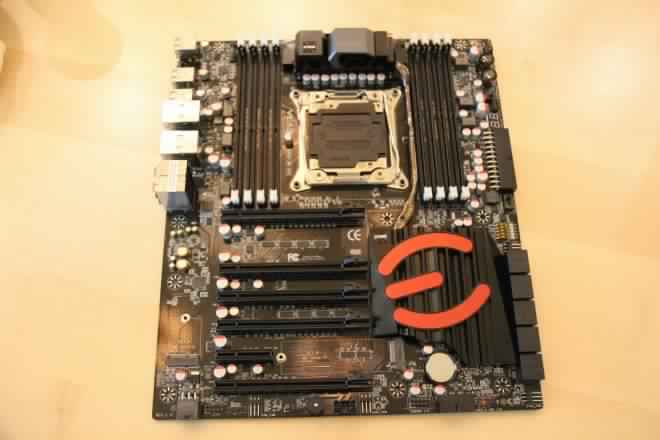

So, X99 Classified received 10-phase power system, 8 slots for RAM and ten SATA 6 Gb / s. There are five slots PCI Express x16, PCI Express x4 slot and two ports M.2. It is interesting that most of the additional connectors and terminals X99 Classified deployed at 90 degrees.

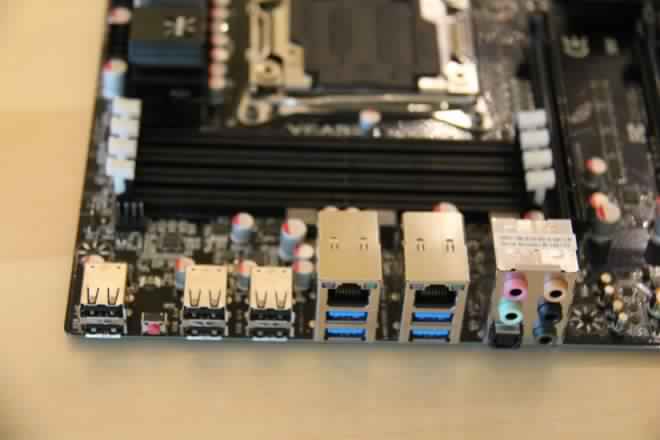

Model is equipped with audio system Creative Core3D, and on I / O panel has 6 ports USB 2.0, four-port USB 3.0, a pair of LAN ports and a set of audio.

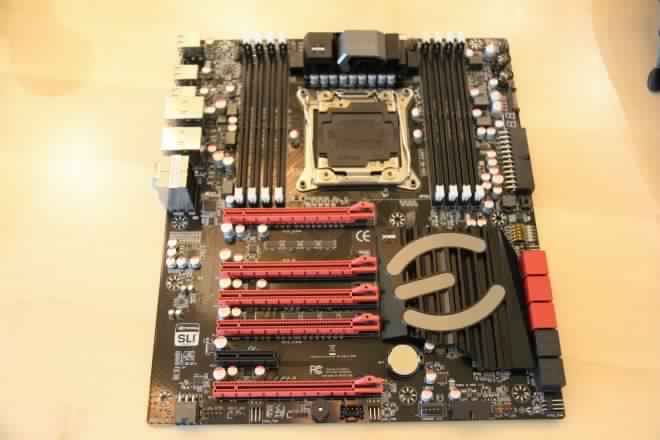

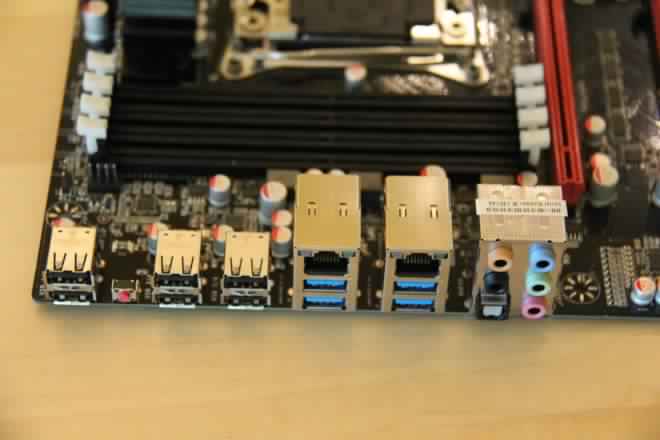

The model X99 FTW emphasis shifted towards ensuring maximum overclocking at moderate cost. For this reason, engineers EVGA abandoned sound Creative Core3D in favor of the ordinary solutions Realtek ALC 1150, as well as slots M.2. The rest of the board layout match those of the model X99 Classified.

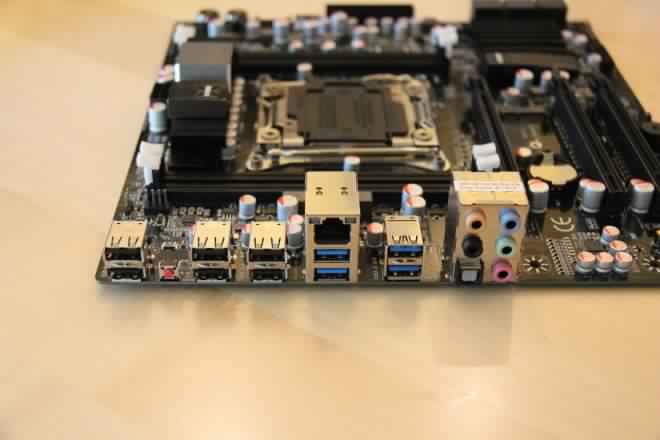

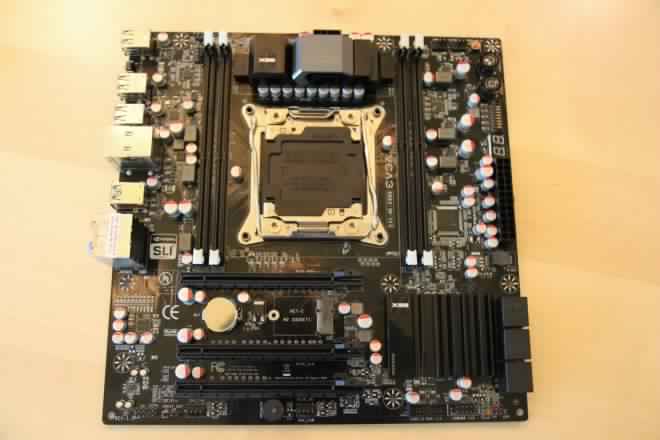

The third model - X99 Micro - looks modest compared with their older analog. Slots for RAM are only four connectors PCI Express x16 - three, and SATA 6 Gb / s - six pieces. At the same time there was a place on the board slot M.2.
