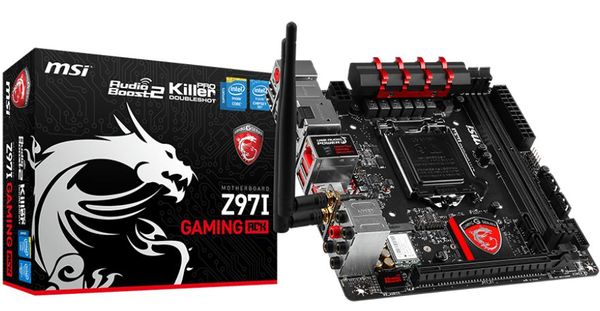

MSI has expanded its range of motherboards new model is positioned as a game, and made in the form factor Mini-ITX.

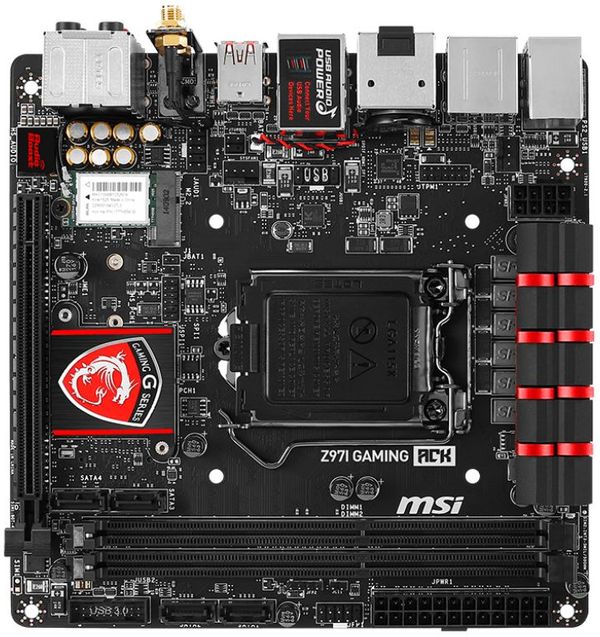

Z97I GAMING ACK, based on single-chip chipset Intel Z97 Express and focused on work with processors Intel Core / Pentium / Celeron fourth and fifth generation LGA 1150. There is one interface PCIe 3.0 x16. Memory slots are only two. They can host DDR3 memory modules total volume up to 16 GB and 3300 MHz frequency up to (but operation at such high frequencies is not guaranteed).
On this board, you can find a seat for the installation of solid-state drives with M.2 PCIe interface 10 Gb / s (and, judging from the description, only supported PCIe, and M.2 SATA).
Network capabilities are made by Gigabit LAN RJ-45 (Killer E2205 with advanced gaming features), Wi-Fi 802.11ac and Bluetooth 4.1. The rear panel of the motherboard contains two DisplayPort and HDMI, but DVI (and especially D-Sub) has no place, but there is a PS / 2 port, four USB 3.0 and USB 2.0, audio connectors and two connectors for the antennas WiFi. Related Products :
|
