iFixit experts assessed the maintainability of the tablet Microsoft Surface Pro 4.
To begin experts dismantled the tablet part . It was necessary to remove the display. This has opened up access to the system board

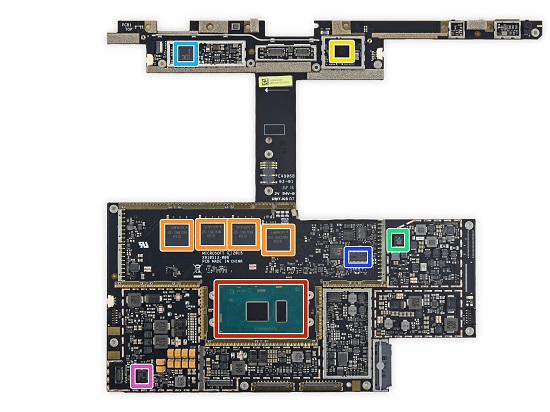

Attached to the motherboard SSD- Samsung PM951 has a capacity of 128 GB. Located on the motherboard CPU Intel Core i5-6300U, chip RAM Samsung K4E6E304EE-EGCF (8 GB 1867 MHz LPDDR3) Audio Codec Realtek ALC3269, microcontroller Freescale Kinetis KL17 MKL17Z256VFM4, module Marvell Avastar W8897, providing Wi-Fi connection, and Bluetooth, and other elements. Fixed on the back of the case battery has a capacity of 18 Wh.

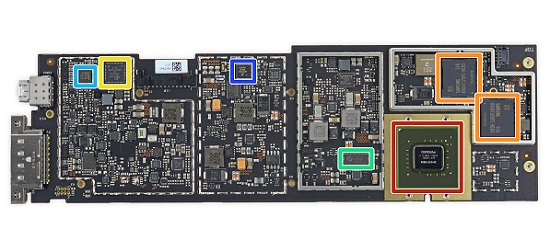

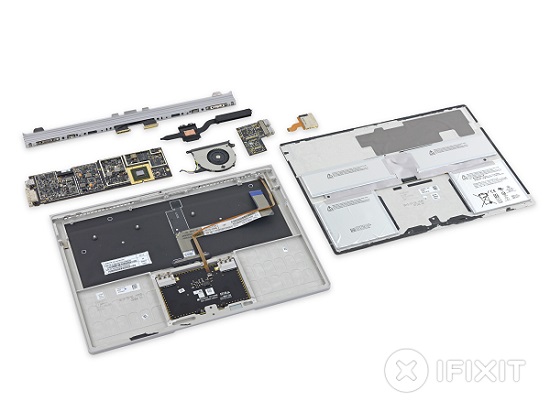

Second, notebook keyboard, , turned out to be somewhat easier to disassemble. This battery capacity is 51 Wh. This explains why the laptop shows such a long battery life. Also here is the motherboard, contains the graphics processor NVIDIA N16S-LG, memory chips Samsung K4G41325FC, microcontroller Freescale Kinetis KL17, chip NXP CBTL06GP213EE and other elements.
iFixit Experts say Surface Book disassembly causes considerable difficulties. The need for the dismantling of the display, soldered processor and memory, glued batteries and other design features make it very difficult disassembly and devices repair. The only element that is more or less easily replaced - it is SSD-drive. Related Products :
|
