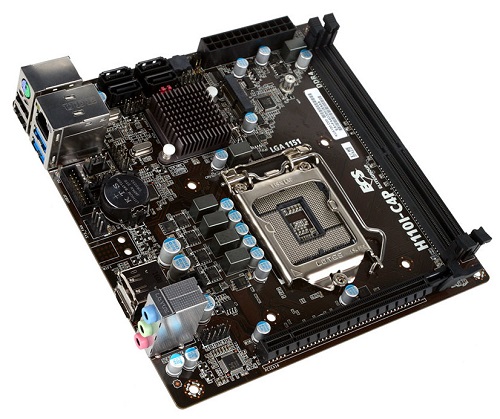

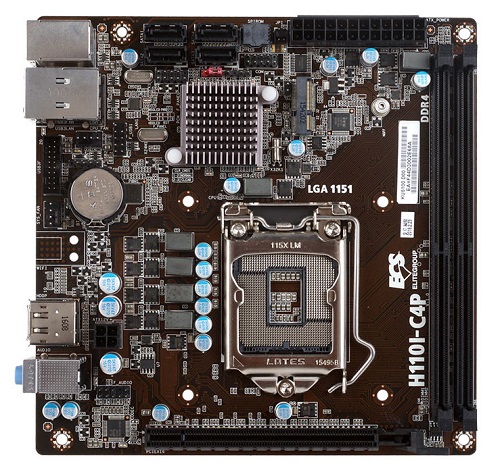

ECS company expanded its range of new motherboard h110i-C4P , which is designed to build inexpensive systems based on Intel processors generation Skylake LGA 1151. New device made in the form factor mini-ITX, so that based on it can be assembled compact system, for example, a multimedia center for living room.
ECS H110I-C4P performed on a set of system logic Intel H110. CPU power system includes all four phases, and has a 4-pin connector to power it. There is also two slots for RAM modules DDR4 with frequency to 2133 MHz and a total volume of up to 32 GB. To connect extension boards has a single slot PCI-Express 3.0 x16, and M.2 slot for Wi-Fi module and Bluetooth.
To connect the devices storage on the motherboard ECS H110I-C4P has four ports SATA 3.0. For network connection here answers Gigabit LAN controller Realtek RTL8111H, and audio system is based on the 6-channel Realtek ALC662. On the rear panel are DisplayPort video outputs and HDMI 1.4a, two ports USB 3.0 and USB 2.0, three 3.5mm audio jacks, PS / 2 port and a network port.
Motherboard ECS H110I-C4P soon will be on sale, and its value is expected to be below 80 US dollars. Related Products :
|
