Recently, Intel has set a priority to issue mini-PC form factors. This priority is reflected in the fact that such devices are updated with the advent of each new Intel platform. So, by the end of the year the company plans to introduce new processors Kaby Lake, and in the beginning of next year - Apollo Lake processors (Atom class successors SoC Braswell). Based on each of these platforms NUC mini PC will be released in a timely manner: Baby Canyon system Kaby Lake and Arches Canyon system on Apollo Lake.
In cases NUC height 51 mm space for storage in the form factor 2.5-inch height 9 mm. Systems Apollo Lake are just so high. Systems Kaby Lake will go well as 35 mm, which involves the use of more productive and expensive storage in the form factor M.2 SATA drive and PCI Express x4. But in all cases, the new items will be held wireless adapters Wi-Fi Intel Wireless-AC 8265 (Wi-Fi 802.11ac, Bluetooth 4.2 and WiDi).

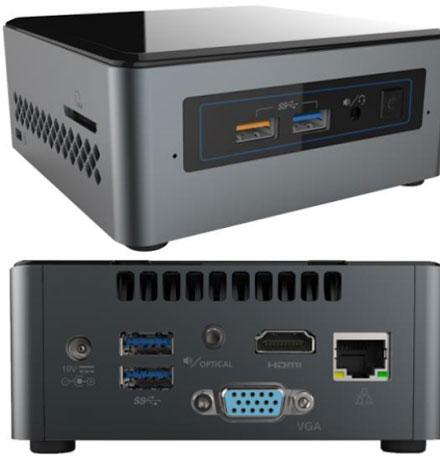

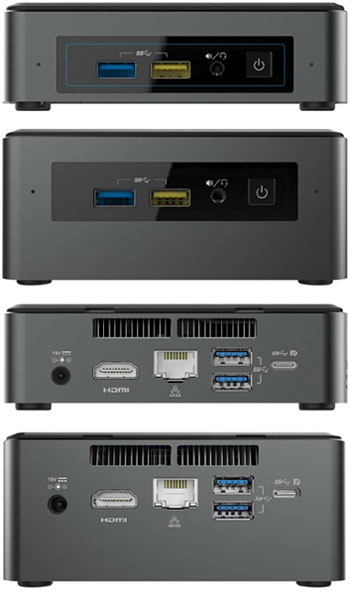

Intel NUC systems get HDMI 2.0 support, which will enhance their ability to connect to monitors and TVs. for DisplayPort 1.2 and Thunderbolt 3 connection is realized through the USB-C port. Intel Iris integrated graphics will have only one model on the processor Intel Core i7 (TDP 28 W) - NUC7i7BNH. Two other models will carry the processors Core i5 with a TDP of 15 watts (NUC7i5BNH and NUC7i5BNK), and two more - NUC7i3BNH and NUC7i3BNK -15-watt Intel Core i3 model.
NUC models on Arches Canyon platform uses Intel Celeron Jxxx quad-core processors with a TDP of 10 watts. There are two kinds of systems: pre-loaded with memory and Windows 10 . Preset memory - 2 GB of RAM is DDR3L and eMMC module capacity of 32 GB. In all models, including models Baby Canyon, instead of the slot for cards SDXC slot placed microSDXC. This definitely limits the compatibility with older cards.
