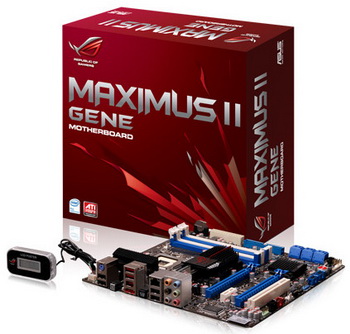

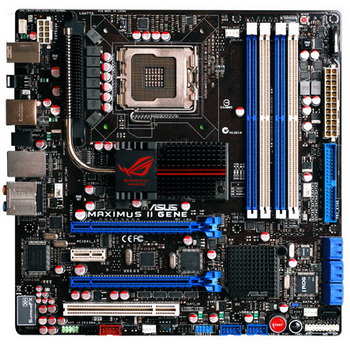

Asus company will release one additional product series republic of gamers : the motherboard Maximus II GENE, micro ATX. This motherboard will be based on P45 chipset, from Intel company . Maximus II will obtain the support of Core 2 Duo/Quad/extreme processors, DDR 2-1300 ( four slots ). This motherboard supports the regime crossFireX , there are two slots PCI-Express x16. Asus Developers supplied Maximus II system with effective energy distribution systems : EPU- 6 engine.
Asus maximus II GENE p45 Specification :
Model: ROG maximus II GENE
Supported processors: LGA775 for Intel core 2 Extreme/Core 2 Quad/core 2 Duo
Chipset: Intel p45 express
System bus: 1600/1333/1066/800 MHz
Memory: 4 x DIMM, dual-channel, up to 16Gb, DDR2 1300/1200/1066/800/667 MHz
Expansion Slots : 2 x PCIe2.0 x16, 1 x PCIex1, 1 x PCI 2.2
Multi-GPU: ATI crossFireX
Interfaces: 8 x SATA 3.0 GB/s, 1 x eSATA 3.0 GB/s, 1 x ultraDMA 133
LAN: Gigabit LAN
Audio: SupremeFX X -Fi 8 ch with EAX4.0 support
1 x PS/2, 1 x eSATA, 1 x iEEE1394a, 1 x clr CMOS, 1 x optical S/PDIF USB/iEEE1394a: 12 x USB2.0/2 x 1394a
Connectors for fans: 5 (1 x CPU/4 X additional)
MemOK!, SupremeFX X -Fi, CPU level Up, Keyboard-TweakIt, Extreme tweaker, iROG, Loadline calibration, LCD poster, EPU- 6 engine, Voltiminder LED
Form factor: mATX, 24.4x24.4 cm Related Products :
|
