POSTER: computer news || ASROCK Z87 OC FORMULA

DATE:2013-06-18

ASRock company increased the period of its guarantee on the system board for overclockers series Z87 OC Formula - Z87 OC Formula / ac and Z87 OC Formula.

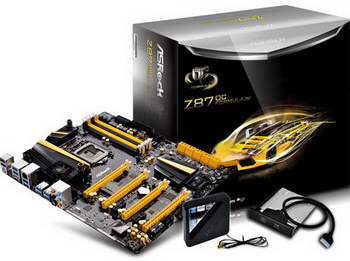

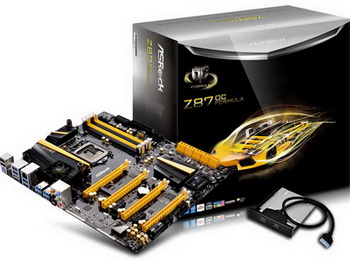

Recall new items are made in the form factor SSI-CEB, based on chipset Intel Z87 Express, support LGA 1150 processors from Intel Core i5/i7-4000 and 8 slot PCB with a waterproof coating applied on top. Unlike the model Z87 OC Formula on the model Z87 OC Formula / ac support the 802.11ac Wi-Fi interface .

Motherboard is equipped with 12-phase power supply system DigiPower VRM, consisting of high components such as electrolytic capacitors Japan. Also, there are four slots for dual-channel memory DDR3 (up to 32GB), four-slot PCI Express 3.0 x16 (the presence of switching chip PLX allows working configurations SLI / CrossFireX mode at least 4x8), two PCI Express 2.0 x16, one mini-PCIe two pin USB 3.0 (4 ports), power connectors EPS12V (2) and Molex 4-pin. It is necessary to mark the six-port SATA 6 Gb / s and four SATA 3 Gb / s, high-quality audio solution Purity Sound, the controller I / O server-class Nuvoton NCT6776D, Nuvoton NCT7904D chip to perform the functions of monitoring, additional SATA 6 Gb / s ASMedia ASM1061, Gigabit Network Controller Intel I217V and Intel I211, as well as an additional controller USB 3.0 ASMedia ASM1074.

There are also keys to adjust frequency and voltage, jacks for measuring voltage switches to activate the LN2 and power slots PCI-E 3.0 x16, as well as the display for 11-minute readings temperature sensors. Cooling system consists of three radiators.
