One of the models - ASRock Z97 Extreme6 - received connector Ultra M.2 for SSDs .

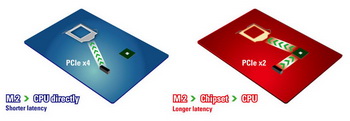

Thus, the slot Ultra M.2 directly connected to the root complex PCI Express 3.0, is located in the processor, while the standard implementation assumes connection via the chipset. This reduces delays during data transfer.

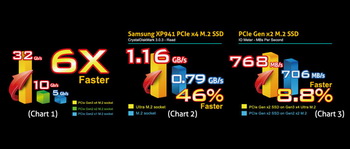

Furthermore, ASRock has involved twice PCI Express lanes for data transmission. Theoretical bandwidth slots Ultra M.2 is 32 Gbit / s, which is three to six times greater than the capabilities of the standard M.2 with two or one line of PCI Express 2.0, respectively. In practice, the performance gains are much more modest, but still noticeable.
