Intel is preparing two new families of 14-nm processors: Broadwell in LGA 1150 and Skylake LGA 1151. The range will be limited to the first two models with the free multiplier and TDP level not more than 65 Wr.

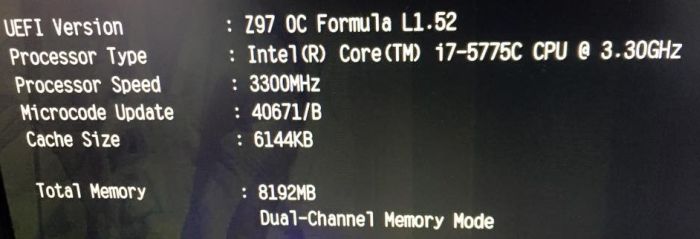

Today appeared the first photos overclocking Core i7-5775C Broadwell. More precisely, the engineering model was used, which was installed in the motherboard ASRock Z97 OC Formula.

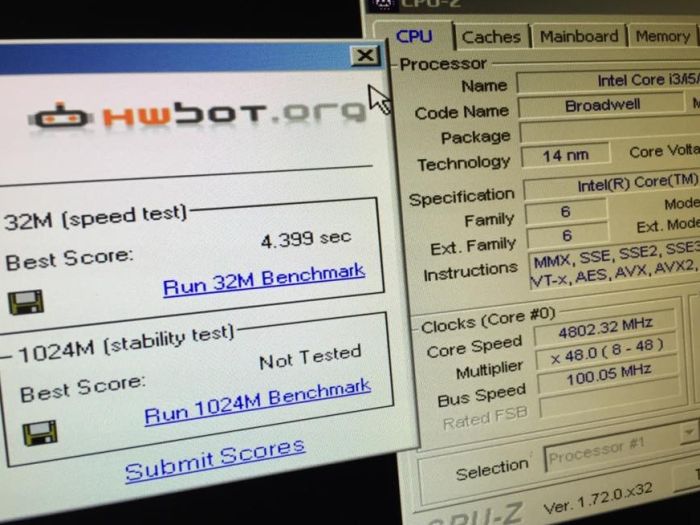

The processor has four cores and supports Hyper-Threading, works with dual-channel DDR3 memory and is equipped with a 6 MB cache in the third level. TDP value does not exceed 65 watts, the processor was able to perform the test wPrime 32M in 4,399 seconds at a frequency of 4.8 GHz .

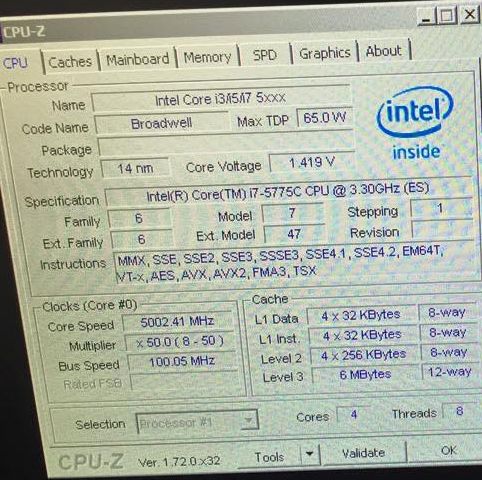

If we talk about overclocking without the computational load, the CPU frequency Core i7-5775C managed to raise up to 5.0 GHz with the activity of all four cores and Hyper-Threading, the voltage was 1.419 V. The processor is cooled by air.

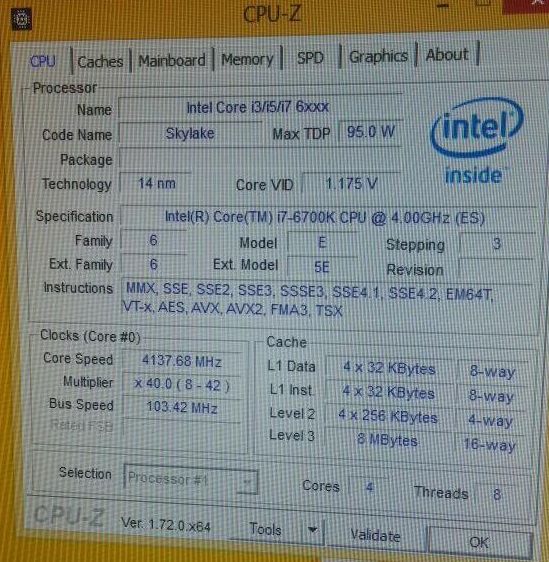

As a bonus a screen capture of utility CPU-Z, which describes the characteristics of the engineering sample processor generation Core i7-6700K Skylake. In the turbo mode it is capable of operating at frequencies of 4.0-4.2 GHz , the voltage is not greater than 1.175 V, and the TDP level - 95 watts.
