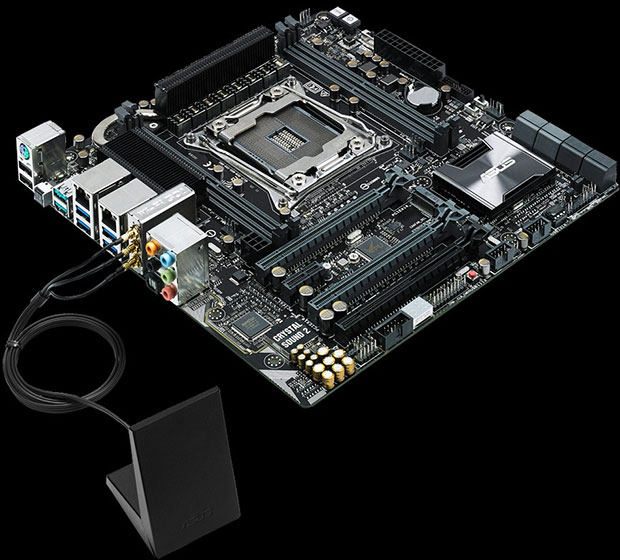

ASUS company developed a compact board in micro-ATX form factor with the ability to install the processor Intel Xeon E5-2600 Haswell-E or the relevant Core i7 - Model X99-M WS (processor socket - LGA 2011 v3).
Four slots for DDR4-3200 + memory modules under normal mode or with ECC (in case of Xeon models) will a max of 64 GB onboard memory, and three PCI Express x16 slots will allow supplement the system CrossFire- or SLI-configured graphics.
There are two ports of Gigabit Ethernet. One port is implemented chip Intel I210-AT, the second - Intel I218LM. wireless networking capabilities standard 3x3 802.11ac Wi-Fi and Bluetooth 4.0. Also included software cFosSpeed to control network traffic.
Ports presented by 8 SATS 6 Gb / s with configurations RAID, slot M.2, 8th rear- USB (4 ports USB 3.0, two USB 2.0 ports and 2 port USB 3.1 Type-A), 6 additional USB ports on the motherboard (2 USB 3.0 ports and a 4-port USB 2.0). For audio output Realtek ALC1150 and Japanese capacitors. Related Products :
|
