 Gallery of the GeForce GTX 1060 by NVIDIA partners

Recommended : Free unlimited image hosting with image editor


Following the announcement of GeForce GTX 1060, many  NVIDIA partners presented their own version of the graphics card, which are mostly made in the printed circuit boards proprietary NVIDIA partners, and are equipped with non-standard cooling systems.

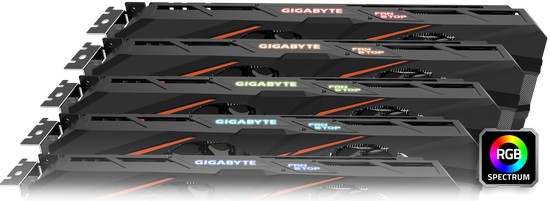

Gigabyte presented the video card GeForce GTX 1060 G1 Gaming, which is equipped with a cooling system WindForce 2X.  This cooling system includes a massive cooler with two heat pipes in direct contact with the GPU, who blasted two 90-mm fans.  Also, the video card from Gigabyte got enhanced power system with 6 + 1 phases, instead of the standard 3 + 1 phases.

Asus company prepares to release immediately three own versions of GeForce GTX 1060, reported by our colleagues from Tom's Hardware.  Asus will release the Turbo graphics card GeForce GTX 1060, in many ways similar to the reference GeForce GTX 1060, which is likely to cost around $ 249 .  There will also be a version of the video card cooling system DirectCU II pair of fans.  Finally,  Asus will release the video card GeForce GTX 1060 ROG Strix GeForce GTX 1060, which will receive a large DirectCU III cooling system with three fans and RGB-backlit.

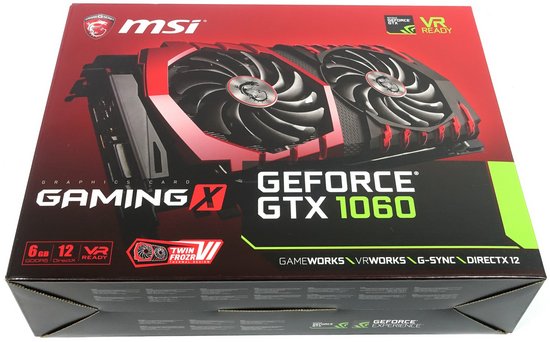

MSI has also produced several own versions of the GeForce GTX 1060. One of the novelties called GeForce GTX Gaming X 1060 will receive TwinFrozr VI cooling system, which we have already seen in the GeForce GTX 1070 and GeForce GTX 1080 from MSI.  Also new will be enhanced power system with one 8-pin connector.

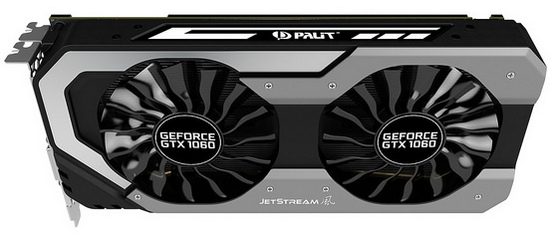

The company will release just three Palit GeForce GTX 1060 own performance: Super JetStream, JetStream and Dual.  All three new items will get the cooling system with two fans, and the first two will be more and reinforcement plate and RGB-lights.  It is reported that the video card Palit GeForce GTX 1060 Super JetStream 6GB GPU is overclocked to 1847 MHz (in GPU Boost mode).

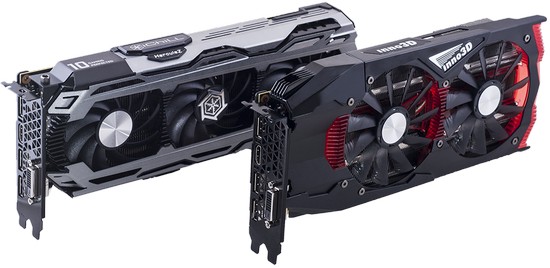

The company has introduced two Inno3D GeForce GTX own version 1060. The video card GeForce GTX Gaming OC X2 1060 had a cooling system with a couple of fans and big heatsink, and the GeForce GTX 1060 iChiLL X3, in turn, it is equipped with the familiar HerculeZ cooling system with three fans.  The GPU in the two graphics cards running at up to 1784 MHz, and 6GB GDDR5 video memory - 8.2 GHz.

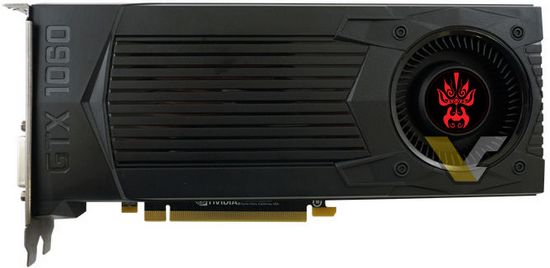

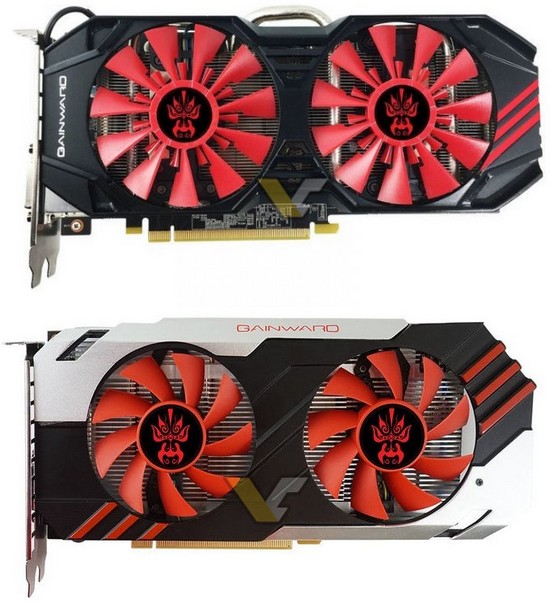

The first GeForce GTX 1060 from Gainward is a lot like the reference.  It is also equipped with a cooling system with radial fan.  Most likely, this card will be sold at a price close to the recommended $ 249.  The other two GeForce GTX 1060 by Gainward will be built on non-reference PCB with power subsystems with 4 + 1 phase.  GPU one of these new products will work with 1544/1759 MHz frequency, and the other - 1519/1734 MHz.

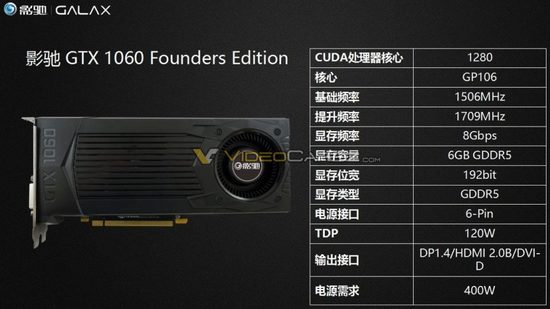

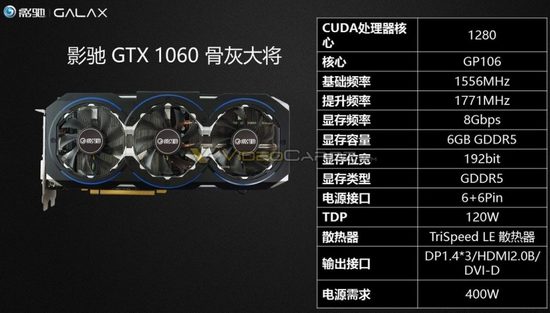

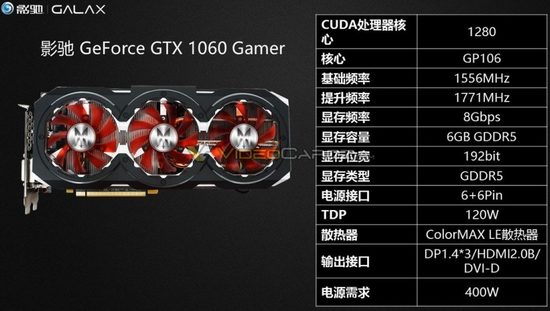

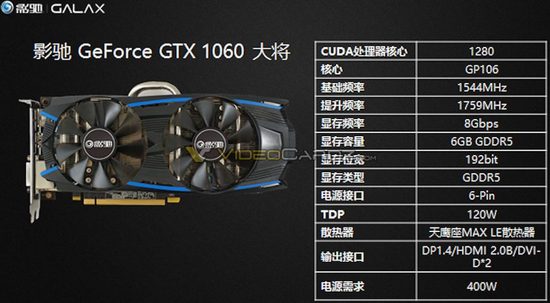

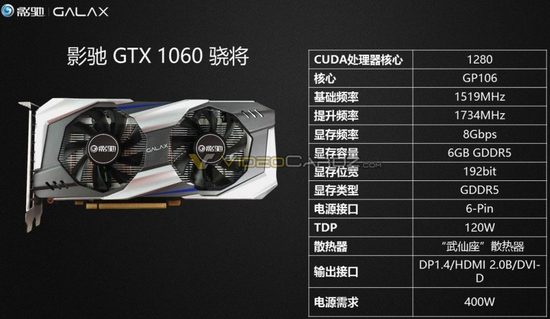

Finally, the company Galaxy Microsystems, known in our region under as brand KFA2, immediately release five of their own versions  video card GeForce GTX 1060. The other two will get the cooling system with two fans, and their GPU will work at frequencies 1544/1759 and 1519/1734 MHz.  Finally, the video card GeForce GTX 1060 and GeForce GTX Gamer 1060 Ashes General will be equipped with cooling systems with three fans, will receive two 6-pin power connector, and GPU will work at frequencies 1556/1771 MHz.
