POSTER: computer news   ||   COOLER MASTER 690 II AND 690 II ADVANCED	DATE:2010-01-13

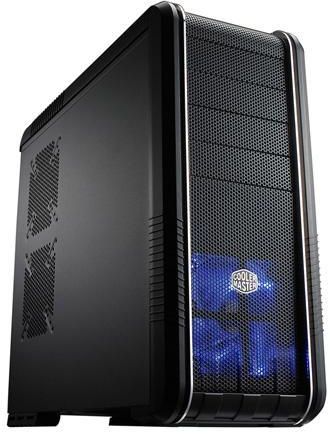

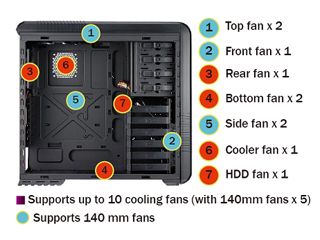

Cooler master company  presented a series of case CM 690 II, that consists of two models - CM 690 II and CM 690 II Advanced. High-quality metallic case is coated by plastic panels and wire . The parts of the case, covered by grid, are equipped with detachable filters, which recover dust - they are located on the upper, frontal and lower case sides . The case dimensions are equal to 214,5 X 511,8 X 528,8 mm, its net mass reaches 9,56 kg. There is one 140 mm fan with blue illumination, which rotate at 1200 rp/min with the noise level 19 dB. And on the rear panel is placed one 120 mm fan, which rotate at 1200 r/min rate with the noise level 17 dB. Finally, on the upper panel is provided a place for two fans standard size 120 mm or 140 mm, in the regular assembly, there is one 140 mm fan, which rotate at 1200 rp/min with the noise level not more than 19 dB. The total quantity of fans in the case can reach ten pieces. For them are provided additional places on the lower case panel (2 X 120 mm), on the right detachable panel (2 X 120 mm or 2 X 140 mm), on the left panel (one fan standard size 80 X 15 mm ). The special window, allow to remove cooler  and water-blocks without removing the motherboard , is located under the processor socket. Additional support to the video card (up to three pieces) , which is delivered only with the case CM 690 II Advanced. In this assembly,  it is also possible to reveal special adapter for the installation of standard size 2.5 " and 1.8 " in 3.5 " . In the upper panel section are provided USB 2.0 ports (two pieces), eSATA port  ,   microphone and head sets connection. The case has four sections 5.25 ", one is converted in external section 3.5 ". Six internal sections 3.5 .  Power unit is located in the lower case part . The case CM 690 II in the cheapest assembly will cost about $80. For additional accessories like the retaining device for the video card, adapter for 3.5 section .... about $20 is required. Related Products :
