Biostar company introduced a new line motherboard productive Racing, which includes three models, CPU socket LGA 1151, designed to work with processors Intel Skylake. New items are called Z170GT7, B150GT5 and H170GT3, which are based on chipset Intel Z170, B150 and H170, respectively. The first of these is designed to build powerful gaming systems, and the other two most suitable for midrange systems.

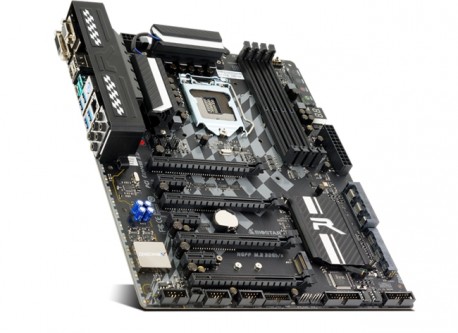

So, the older model Racing Z170GT7 ATX size, received the processor power system with 9 phases and four slots for RAM DDR4 memory at up to 3200 MHz. A set of expansion slots on this motherboard includes four connectors PCI Express 3.0 x16 and three PCI Express 3.0 x1. To connect the storage plug M.2 has three ports and SATA Express. The board also has a port USB 3.1 Type-C, five connectors USB 3.0, video output DVI, VGA and two HDMI.

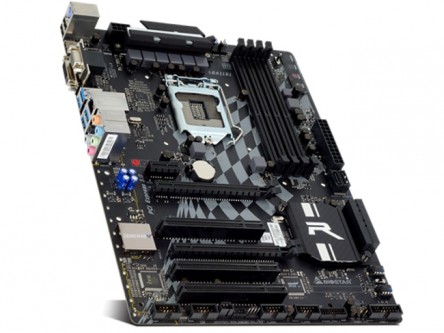

Model Racing B150GT5 also made in the ATX form factor and has processor power system with 7 phases. It is equipped with four slots for RAM DDR4-2133, a dual-slot PCI Express 3.0 x16, one PCI Express 3.0 x1 and three PCI. For storage devices have four ports SATA 3.0 connector and SATA Express. The rear panel has four ports USB 3.0, two USB 2.0, and video outputs DVI, VGA and HDMI.

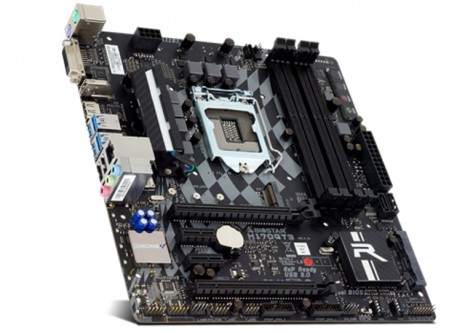

Lastly, Racing H170GT3 also has processor power system with 7 phases, but this board is made in the form factor Micro-ATX. It is also equipped with four slots for RAM DDR4-2133. A set of expansion slots includes two slots for PCI Express 3.0 x16 and one PCI Express 3.0 x1. To connect the drive has two ports SATA 3.0, one SATA Express slot and M.2. A set of connectors includes four USB 3.0 ports and two USB 2.0, and two video outputs DVI and HDMI.
All boards have a black line Racing color scheme and equipped with LED backlight, which can be controlled via a special application. Related Products :
|
