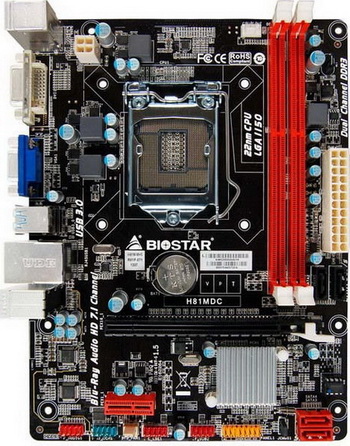

BIOSTAR company , traditionally focused on the budget conscious buyers, started selling the latest motherboard size microATX (244 x 230 mm), model Hi-Fi H81MDC. The device refers to the new generation line Puro Hi-Fi, based on chipset Intel H81 Express, support LGA1150-Intel Core processors fourth generation (Haswell) series Core i7, i5, i3 and Pentium with a maximum level of TDP is 95 watts.
There are two slots for RAM standard DDR3-1600 (up to 16 GB), slot PCI Express 3.0 x16 slot PCIe x1 2.0, two SATA 6 Gb / s and four SATA 3 Gb / s (with support for RAID 0,1 arrays 5 or 10 and technology Intel Smart Response Technology). Also motherboard is equipped with two ports USB 3.0, four-port USB 2.0, Gigabit Ethernet adapter (Realtek RTL8111F), DVI, D-Sub/VGA and HDMI outputs, and support the following proprietary technologies Intel: Smart Response Technology, Rapid Start Technology, Rapid Storage Technology, Smart Connect Technology, and SBA 2.0 (Small Business Advantage) Technology.
We should also mention the presence of high-end audio system, based on the 7.1-channel codec Realtek ALC892, released an effective Noise, signal / noise ratio equal to 110 dB, using high quality components and the presence of an additional shield layer in multilayer printed circuit board (Hi-Fi Ground). Support for Hi-Fi Power provides independent power to each channel analog and digital audio path. Board is protected from electrostatic discharges when turned on or off the headphones and microphones. Also available pre-built headphone amplifier that provides a dynamic range of 100 dB in a wide range of frequencies with minimal distortion and noise. Related Products :
|
