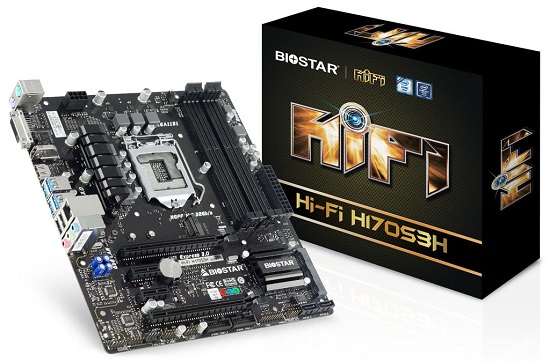

Biostar company expanded its range of motherboard with new model Hi-Fi H170S3H size microATX. The new budget is designed to build systems based on Intel processors generation Skylake. In the first place, the board supports memory DDR3L, instead of the new DDR4, that is, the user can use existing system memory strip, instead of buying new ones. Number of memory slots is equal to four, they can be set up to 8 GB of memory with a frequency of 1600 or 1333.

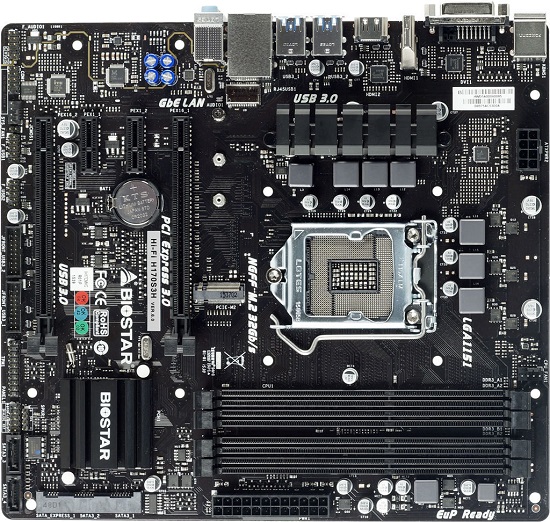

Biostar Hi-Fi H170S3H built on chipset Intel H170 and is designed for Intel's sixth-generation by LGA 1151. Processor power system has seven phases. The maximum CPU heat dissipation should not exceed 95 watts. A set of expansion slots includes two slots PCI Express x1 and two slots PCI Express x16 3.0, only one of them has all 16 lines, and the other - only four.
To connect storage devices motherboard uses a pair of ports SATA 3.0 (6Gb / s), one SATA Express (16 Gbit / s) and M.2 (32 Gbit / s). The board also has a Gigabit Realtek RTL8111H and eight-channel audio codec Realtek ALC887, which is the base of proprietary sound system Hi-Fi. Rear panel connectors include jacks for PS / 2 keyboard and mouse, the video outputs DVI-D and two HDMI 1.4a, four USB 3.0 ports and two USB 2.0, Ethernet port and three audio jacks. Related Products :
|
