In anticipation of the processors Intel Broadwell-E Asus company prepares to release four new motherboards based on Intel X99 for the CPU socket LGA 2011-3. Â The top four includes the following new items: ROG Strix X99 Gaming, X99-Deluxe II Signature, X99 A-II Signature and X99 E.

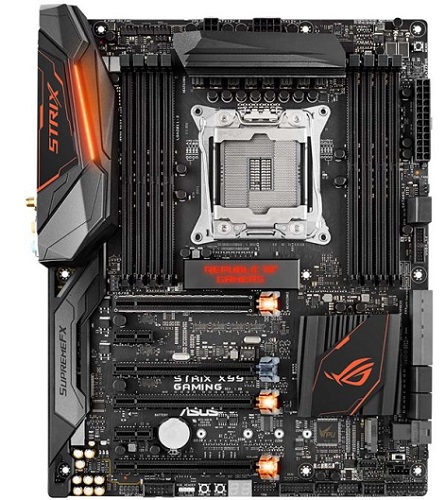

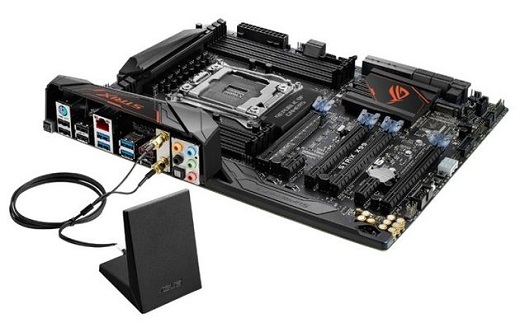

Asus ROG Strix X99 Gaming can offer CPU power system with eight phases. Â Near the CPU socket are eight slots for memory modules DDR4-3333. Â Set of expansion slots includes two slots PCI-e 3.0 x1, four PCI-e 3.0 x16 (work in x16 / x8 / x16 / x8 mode) and M.2 slot. Â Note the presence of the ten ports SATA 3.0, one SATA Express and U.2 port.
This motherboard is equipped with a sound system SupremeFX, Gigabit LAN controller Intel I218-V and the wireless adapter 2 × 2 802.11ac Wi-Fi and Bluetooth 4.0. Â Note the presence of RGB-LED backlight Aura, pins for connection of LED strips, and even the fact that the PCI-e 3.0 x16 slots also have a backlight. Â The rear panel connectors are USB 3.1 Type-C and Type-A. Â The cost of the motherboard Asus ROG Strix X99 Gaming will be equal to $ 339.

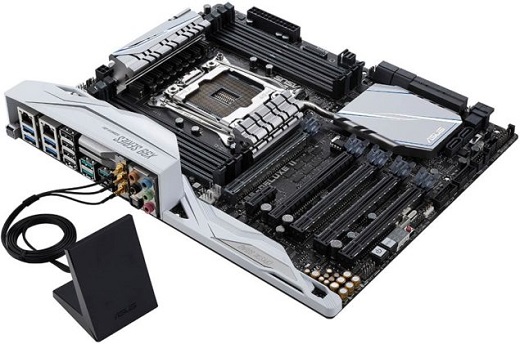

Asus X99-Deluxe II Signature lot like ROG Strix X99 Gaming.  A set of expansion slots includes five connectors PCI-e 3.0 x16 (x16 / x16 / x16 / x16 / x8) and one PCI-e 3.0 x1.  The number of ports is two U.2 and USB 3.1 ports - four (one Type-C).  There is also two Gigabit network adapters, sound system  3 and Crystal Sound Adapter 3x3 802.11ac Wi-Fi and Bluetooth 4.0.  Motherboard Asus X99-Deluxe II Signature is the most expensive novelty - its value is $ 419.

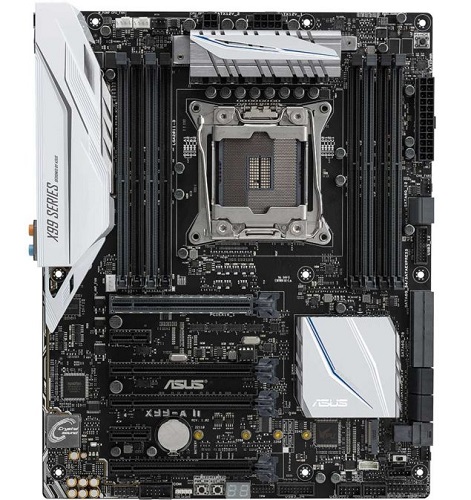

Next novelty - Asus X99-A II Signature,  it is more accessible than the models described above, but it offers very good performance.  It is characterized by the presence of four slots PCI-e 3.0 x16, two PCI-e 3.0 × 1 and one M.2. To connect storage devices has ten SATA 3.0 ports  , one SATA Express connector and one U.2.  Also there is no wireless adapter.  The cost of the new items is $ 249.

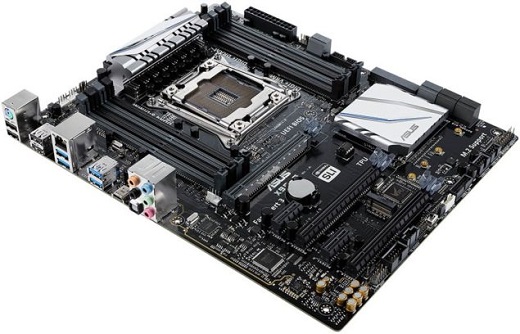

Finally, Asus X99 E is most affordable of the new products. Â It supports memory modules DDR4-3200. Â Novelty has three slots PCI-e 3.0 x16, two slots PCI-e 3.0 x1, M.2 port, a dozen SATA 3.0 ports and the SATA connector Express. Â There is a single port USB 3.1 Type-C, and there is no pin connector for LED strips. Â Cost Asus X99-E is equal to $ 219.
