POSTER: computer news || MOTHERBOARD KENTSFIELD OVERCLOCK MOD |
DATE:2007-03-11 |
|
|

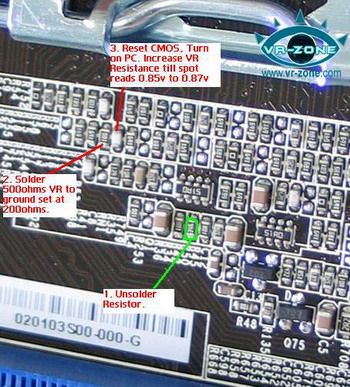

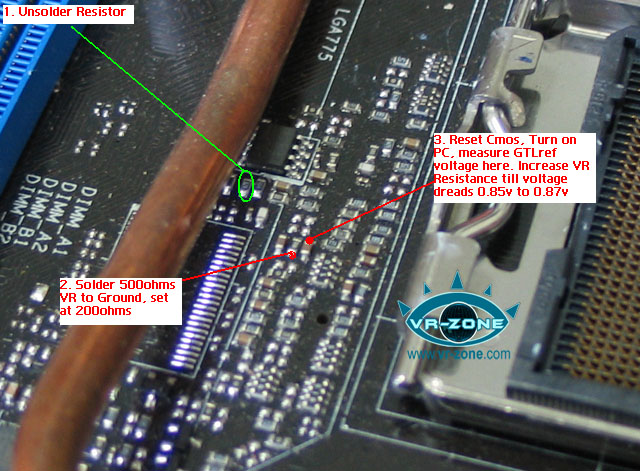

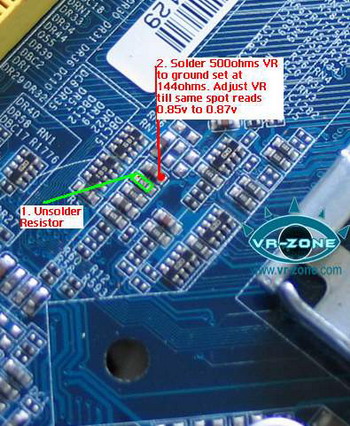

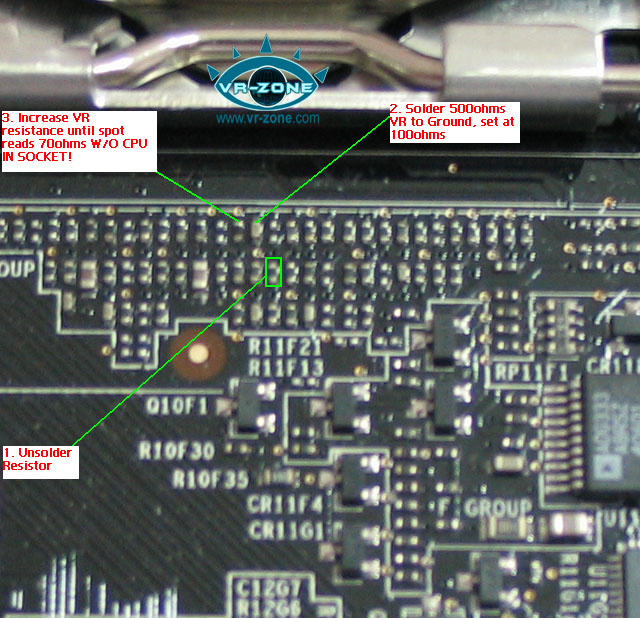

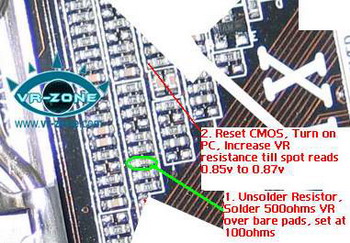

It is already long ago known that the control of voltage GTL Reference Voltage is key to the successful overclock of the fou core processors Kentsfield, and many was occupied with the recent volt mod of standard motherboard on the base of chipset nForce 680i SLI from EVGA , the entire secret of new motherboard version hid better GTL Ref control voltage . Associate has the motherboard EVGA on the base of chipset nForce 680i SLI ( from the old revisions ) and the same motherboard but with the new revision A1.. Since the motherboard BFG, XFX, ECS and Biostar have analogous design, the modification examined below is applicable also to them. The Entire modification is reduced to the removal of one resistor and the installation of another fine-adjustment resistor, and also the control of necessary resistance.  After the secret successful modification, associates proposed it modernized to similar motherboard on the base chipset nForce 680i SLI with alternative design. For example, this picture described the modification of motherboard ASUS P5n32- e sli or ASUS Striker Extreme:  Then abit IN9 32X MAX:  The following photograph is for mod to Foxconn N68s7aa-8ekrs2h:  Finally, the modifications is similar even motherboard based on chipset Intel P965. for example, possible to improve the ability to overclock Kentsfield in Gigabyte series DS3:  As always, we do not take responsibility for possible consequences of modifications . .... Related Products : | ||
|
|
||
|
xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source |
|
|
|
|
||
|
Xtreview Support  N-Post:xxxx Xtreview Support  |
MOTHERBOARD KENTSFIELD OVERCLOCK MOD |
| Please Feel Free to write any Comment; Thanks  |
|
XT Future Member  N-Post: |
MOTHERBOARD KENTSFIELD OVERCLOCK MOD |
| does this mode exist for the asus p5n-d or the msi p6n diamond? |
