MSI, just introduced again just eight motherboards for Socket FM2 +, and new product Socket AM3 +.

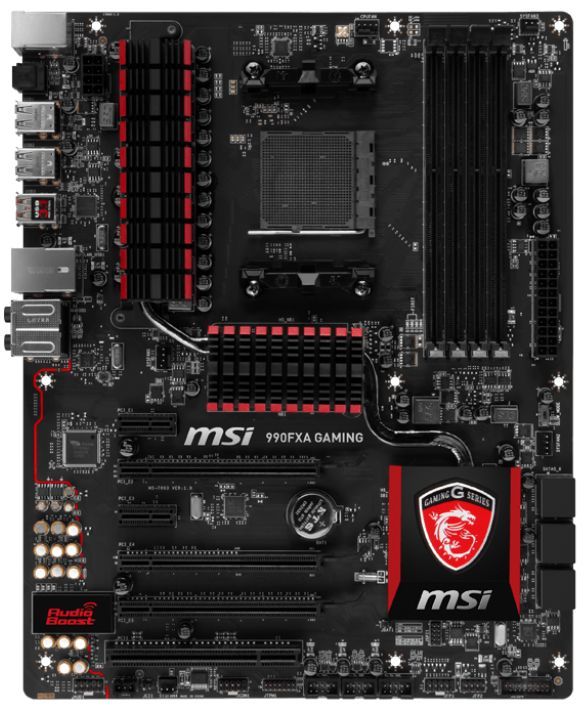

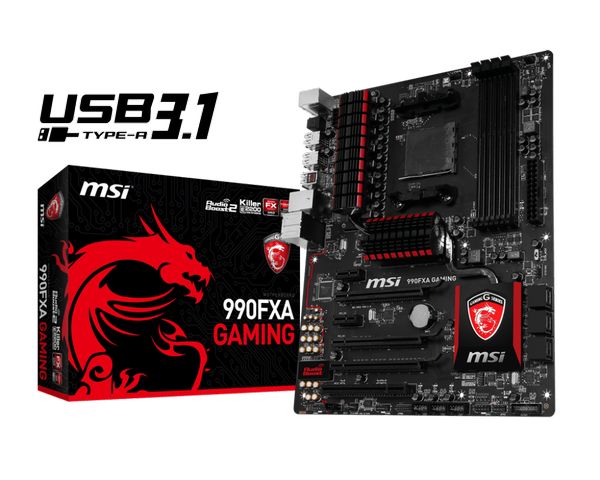

MSI 990FXA GAMING attributed to Gaming series , and therefore got a characteristic black and red colors, the appropriate network controller Killer E2200 and sound system Audio Boost 2 (controller Realtek ALC1150 and liquid electrolyte capacitors). The card are based on the good old AMD 990FX and SB950, and therefore two ports USB 3.1 controller to operate due to the additional ASMedia ASM1142, which is quite remarkable in itself: two USB 3.1 ports, each of which formally has a maximum throughput of 1 Gbit / s, but while he ASM1142 connects to the chipset, a link PCI-E 3.0, or two links PCI-E 2.0 (in our case - the second option).
The remaining 8 additional lines PCI-E 2.0 chipset divided between a PEG (PCI-E x4), two PCI-E x1, Gigabit LAN controller Killer E2200 and another controller, USB, but version 3.0 - VIA VL806 . In addition there are two full-rate PCI-E 2.0 x16. Thus, it is possible to install and operate the system once the three cards.
Declared support for all processors in the performance of Socket AM3 and AM3 +, as well as up to 32 GB of DDR3 memory with the effective frequency to 2133 MHz.
It should be noted, and that MSI 990FXA GAMING fully compatible with SSD-drives with interface PCI-Express, working on a protocol NVMe. NVMe do not operate as a bootable drive in the operating system Windows 7 64bit and Windows 8.1 64bit. Related Products :
|
