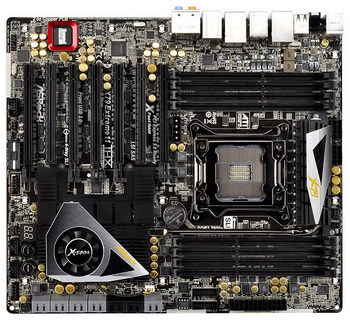

After a fair amount of time the motherboard ASRock X79 Extreme11 was presented officially. The solution has several features that make X79 Extreme11 unique in its kind.
Voltage converter, which is located above the socket LGA 2011, organized under the 24 +2 phase. The motherboard require to connect 24-pin ATX, two 8-pin connectors EPS and two Molex. The power system is controlled by a digital PWM controller and the field-effect transistors based on Dual-Stack and solid-state capacitors, Premium Gold Caps.
There are eight memory slots, supported with effective frequency 2500 MHz. The product is equipped with a seven-slot PCI Express x16 3.0, as well as two chips PLX PEX8747. Thus, the total number of supported lines PCI Express, which can be shared between the video cards, up to 64 units (16 lines for each bond in 4-Way SLI or CrossFireX).
In addition to the standard SATA ports , two of which have the capacity of 6 Gb / s, and four - 3 Gb / s, X79 Extreme11 has a controller LSI SAS2308, providing eight additional port SAS 6 Gb / s.
The I / O panel hosts eight ports USB 2.0, 4-port USB 3.0 (4 more available ), PS / 2 connector, FireWire, two ports eSATA, two-port LAN (Controller Broadcom BCM57781), audio jack and reset button setting CMOS. Related Products :
|
