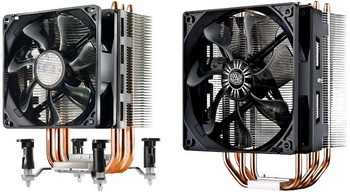

Cooler Master Company introduced two new processor cooling tower layout, Hyper 212 and EVO Hyper TX3 EVO. Both products feature heat pipes and the ability to install additional fan.
Each of the cooler include a adjustable fan speed. Main technical characteristics are in the following table:
Model |
Hyper 212 EVO |
Hyper TX3 EVO |
Dimensions, mm |
120 x 80 x 159 |
90 x 79 x 136 |
Core Dimensions, mm |
116 x 51 x 159 |
90 x 51 x 136 |
Heatsink Material |
copper base, aluminum fins, copper heatpipes in direct contact |
Heat pipes, mm |
4 x �6 |
3 x �6 |
Radiator weight, g |
465 |
306 |
Fan Dimensions, mm |
120 x 120 x 25 |
92 x 92 x 25 |
Speed, r / min. |
600-2000 |
800-2800 |
Air Flow, cu. fut. / min. |
24.9-82.9 |
15.7-54.8 |
Static pressure, mm H 2 O |
0.3-2.7 |
0.35-4.27 |
Bearing Type |
slip |
Noise level, dB |
9-36 |
17-35 |
Expected life time h |
40 000 |
Connection type |
four- |
Operating voltage, V |
12 |
Operating amerage, A |
0.22 |
0.24 |
Power consumption, W |
2.64 |
2.88 |
Fan Mass , . |
104 |
73 |
Compatible with Intel |
LGA 775, 1155, 1156, 1366 |
Compatible with AMD processors |
Socket AM2, AM2 +, AM3, AM3 +, FM1 |
Both coolers will be available in October. Related Products :
|
